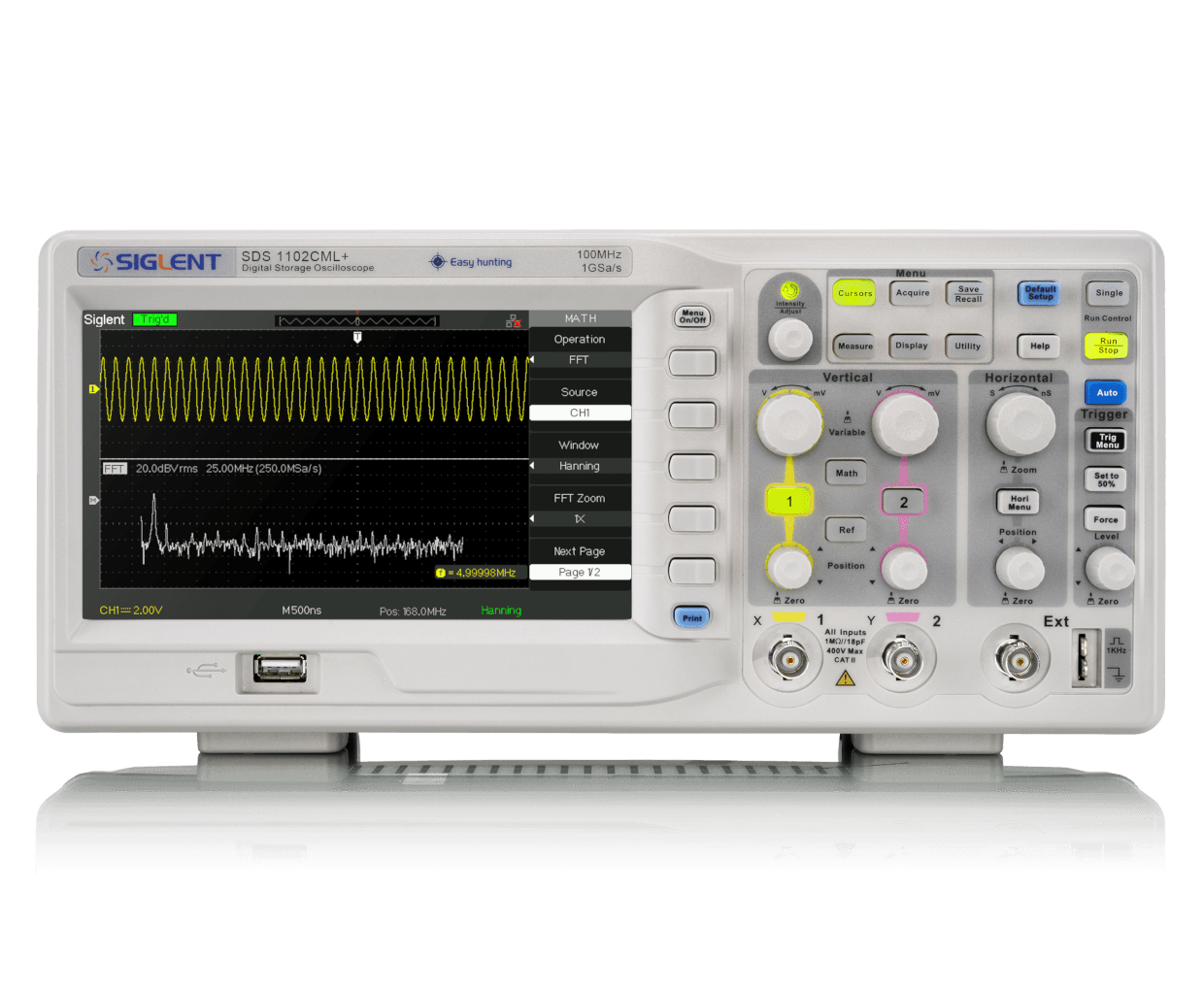

Siglent SDS1000CML+ Digital Storage Oscilloscope 100/150 MHz 2 Channels | Osiloskop Digital
SIGLENT’s SDS1000CML+ Digital Oscilloscopes are dual-channel oscilloscopes, available in 100, and 150 MHz bandwidth models.
Available models include SDS1102CML+, SDS1152CML+.
SIGLENT’s SDS1000CML+ Digital Oscilloscopes are dual-channel oscilloscopes, available in 100, and 150 MHz bandwidth models. The SDS1000CML+ includes a 2 Mpts memory depth that helps to ensure accurate waveform resolution and to capture longer signal lengths. With its 7-inch TFT-LCD (800*480) screen, there is adequate screen space to help better see and analyze waveform details. Along with a 1 GSa/s sampling rate, SDS1000CML+ digital oscilloscopes support 32 parameters measurements and common mathematical operations to speed up complex/repetitive measurements.
Key Features
- Bandwidth 100 MHz, 150 MHz
- Memory depth 2 Mpts
- Sampling rate 1 GSa/s, Equivalent-time sampling rate up to 50 GSa/s
- 2 Channels + EXT Trig channel
- USB Host & Device，LAN，Pass/Fail interface
Model & Varian
| Model | Bandwidth | Channels | Vertical Resolution | Sampling Rate | Memory Depth |
|---|---|---|---|---|---|
| SDS1102CML+ | 100 MHz | 2+EXT | 8-bit | 1 GSa/s | 2 Mpts |
| SDS1152CML+ | 150 MHz | 2+EXT | 8-bit | 1 GSa/s | 2 Mpts |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Model Variants | SDS1102CML+, SDS1152CML+ |
|---|---|
| Bandwidth | 100 MHz; 150 MHz |
| Channels | 2+EXT |
| Vertical Resolution | 8-bit |
| Sampling Rate | 1 GSa/s |
| Memory Depth | 2 Mpts |
| Capture Rate | - |
