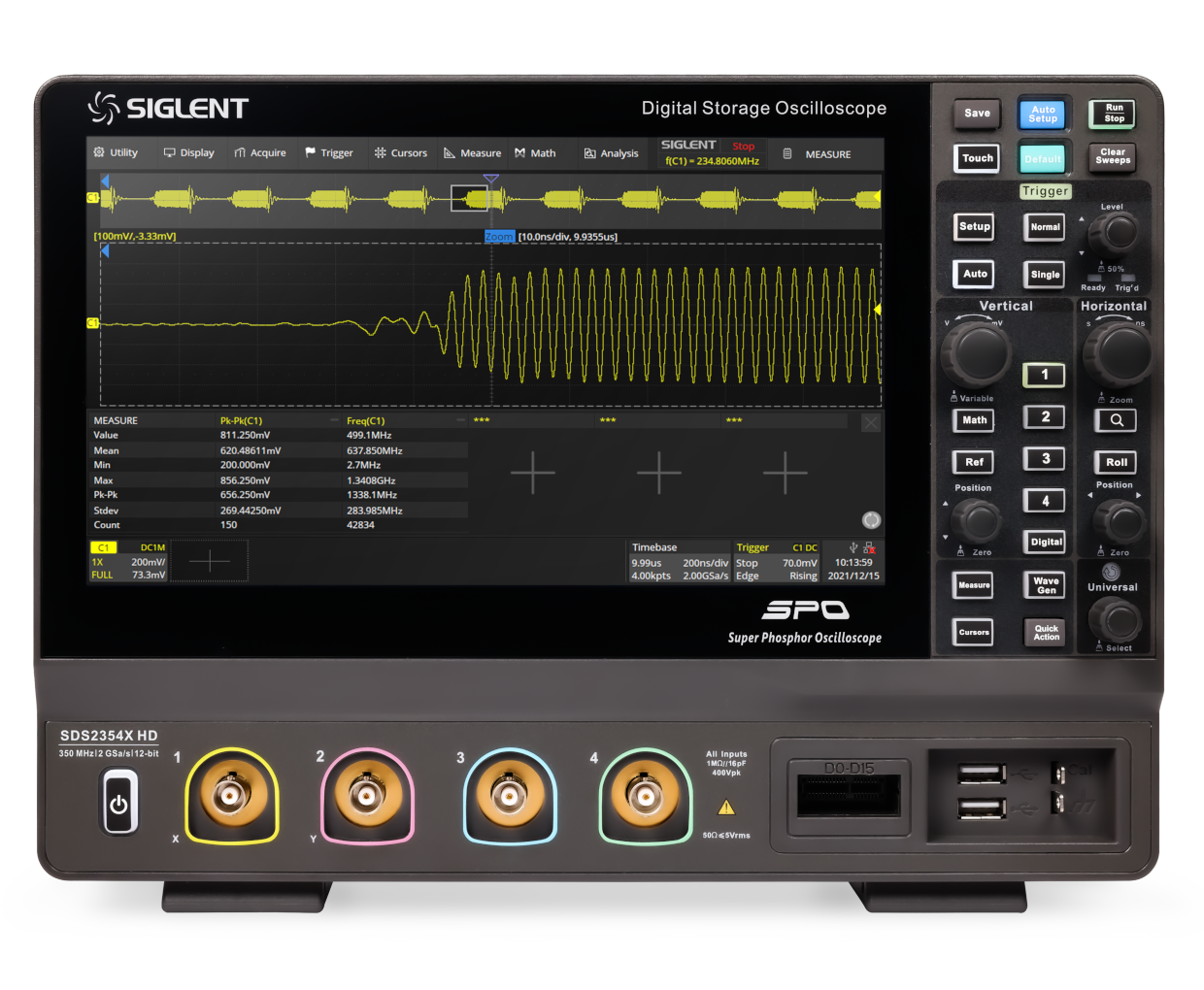

Siglent SDS2000X HD Digital Storage Oscilloscope 200/350 MHz 4 Channels | Osiloskop Digital
SIGLENT’s SDS2000X HD series high resolution digital storage oscilloscopes are based on 2 GSa/s, 12-bit Analog to Digital converters and front ends with excellent noise floor…
Available models include SDS2204X HD, SDS2354X HD.
SIGLENT’s SDS2000X HD series high resolution digital storage oscilloscopes are based on 2 GSa/s, 12-bit Analog to Digital converters and front ends with excellent noise floor performance. They are available in bandwidths of 350 MHz, 200 MHz, have maximum record length of 200 Mpts/ch, and display 4 analog channels + 16 digital channels mixed signal analysis ability. The combination of long storage depth and multiple measurement functions is an ideal choice for electronic enthusiasts and students to learn electronic measurement.
Key Features
- Bandwidth:200 MHz，350 MHz
- ADC:12-bit
- Real time sampling rate: 2 GSa/s
- Memory depth:200 Mpts/ch
- Capture rate:500,000 wfm/s (Sequence mode)
- Low noise floor: Only 70 µVrms at 500 MHz bandwidth.
Model & Varian
| Model | Bandwidth | Channels | Vertical Resolution | Sampling Rate | Memory Depth | Capture Rate |
|---|---|---|---|---|---|---|
| SDS2204X HD | 200 MHz | 4+EXT | 12-bit | 2 GSa/s | 200 Mpts | 500,000 wfm/s |
| SDS2354X HD | 350 MHz | 4+EXT | 12-bit | 2 GSa/s | 200 Mpts | 500,000 wfm/s |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Model Variants | SDS2204X HD, SDS2354X HD |
|---|---|
| Bandwidth | 200 MHz; 350 MHz |
| Channels | 4+EXT |
| Vertical Resolution | 12-bit |
| Sampling Rate | 2 GSa/s |
| Memory Depth | 200 Mpts |
| Capture Rate | 500,000 wfm/s |
