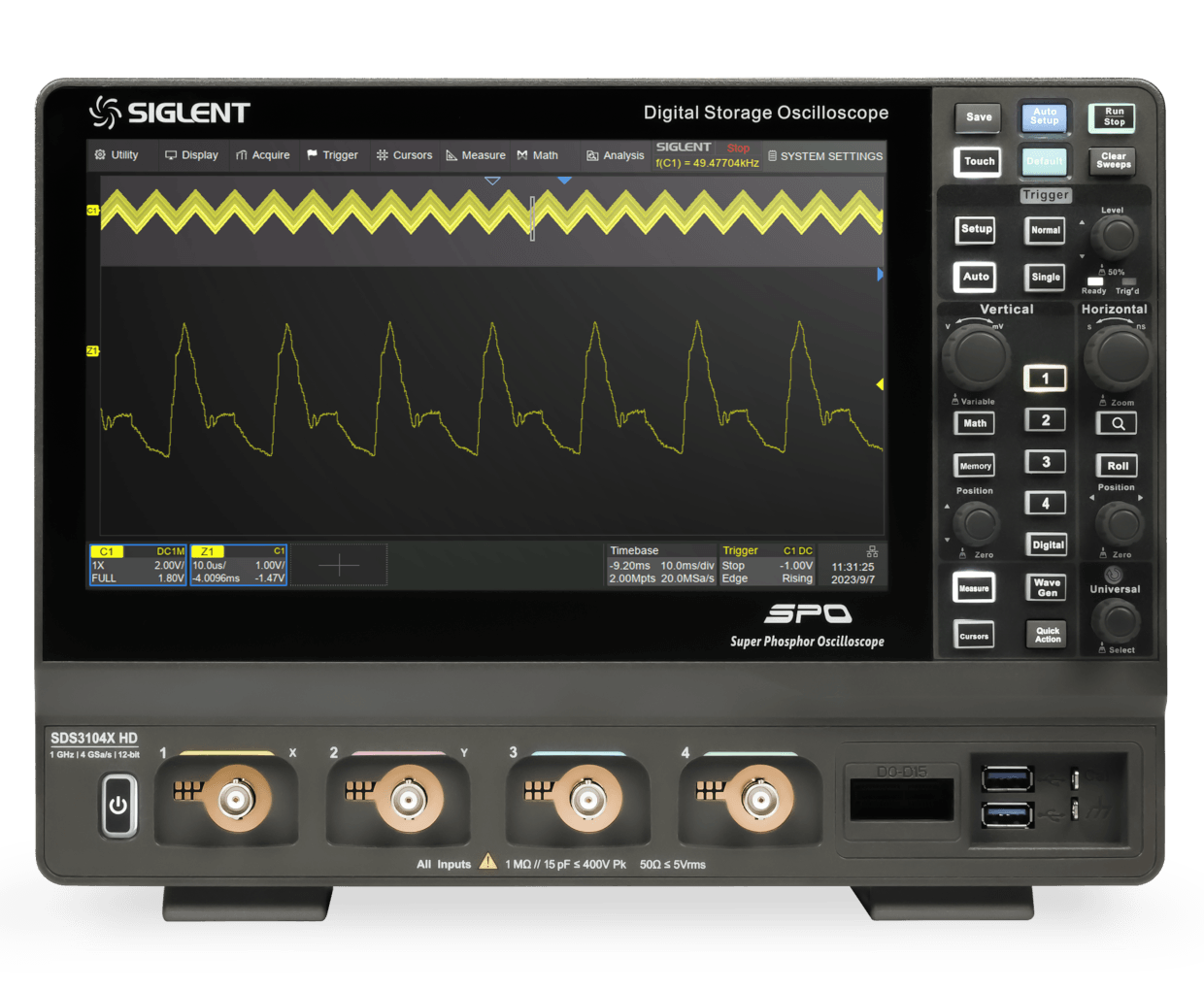

Siglent SDS3000X HD Digital Storage Oscilloscope 350 MHz to 1 GHz 4 Channels | Osiloskop Digital
SDS3000X HD series oscilloscopes are one of the classic products of Siglent. The bandwidth ranges from 1 GHz to 350 MHz, providing 4 channels plus expansion options.
Available models include SDS3104X HD, SDS3054X HD, SDS3034X HD.
SDS3000X HD series oscilloscopes are one of the classic products of Siglent. The bandwidth ranges from 1 GHz to 350 MHz, providing 4 channels plus expansion options. Its sampling rate is as high as 4 GSa/s and waveform capture rate is 890,000 wfm/s, which ensures the real-time and accuracy of signal capture. The high-resolution display in HD mode makes the waveform details clearer, which is suitable for the diversified needs of electronic R&D and education.
Key Features
- Bandwidth:1 GHz、500 MHz、350 MHz
- Memory depth: Up to 400 Mpts/ch
- ADC:12-bit
- Real time sampling rate: Up to 4 GSa/s
- Waveform Capture rate:Up to 890,000 wfm/s
- Low background noise: 125 μVrms @ 1 GHz bandwidth
Model & Varian
| Model | Bandwidth | Channels | Vertical Resolution | Sampling Rate | Memory Depth | Capture Rate |
|---|---|---|---|---|---|---|
| SDS3104X HD | 1 GHz | 4 + EXT | 12-bit | 4 GSa/s | 400 Mpts/ch | 890,000 wfm/s |
| SDS3054X HD | 500 MHz | 4 + EXT | 12-bit | 4 GSa/s | 400 Mpts/ch | 890,000 wfm/s |
| SDS3034X HD | 350 MHz | 4 + EXT | 12-bit | 4 GSa/s | 400 Mpts/ch | 890,000 wfm/s |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Model Variants | SDS3104X HD, SDS3054X HD, SDS3034X HD |
|---|---|
| Bandwidth | 1 GHz; 500 MHz; 350 MHz |
| Channels | 4 + EXT |
| Vertical Resolution | 12-bit |
| Sampling Rate | 4 GSa/s |
| Memory Depth | 400 Mpts/ch |
| Capture Rate | 890,000 wfm/s |
