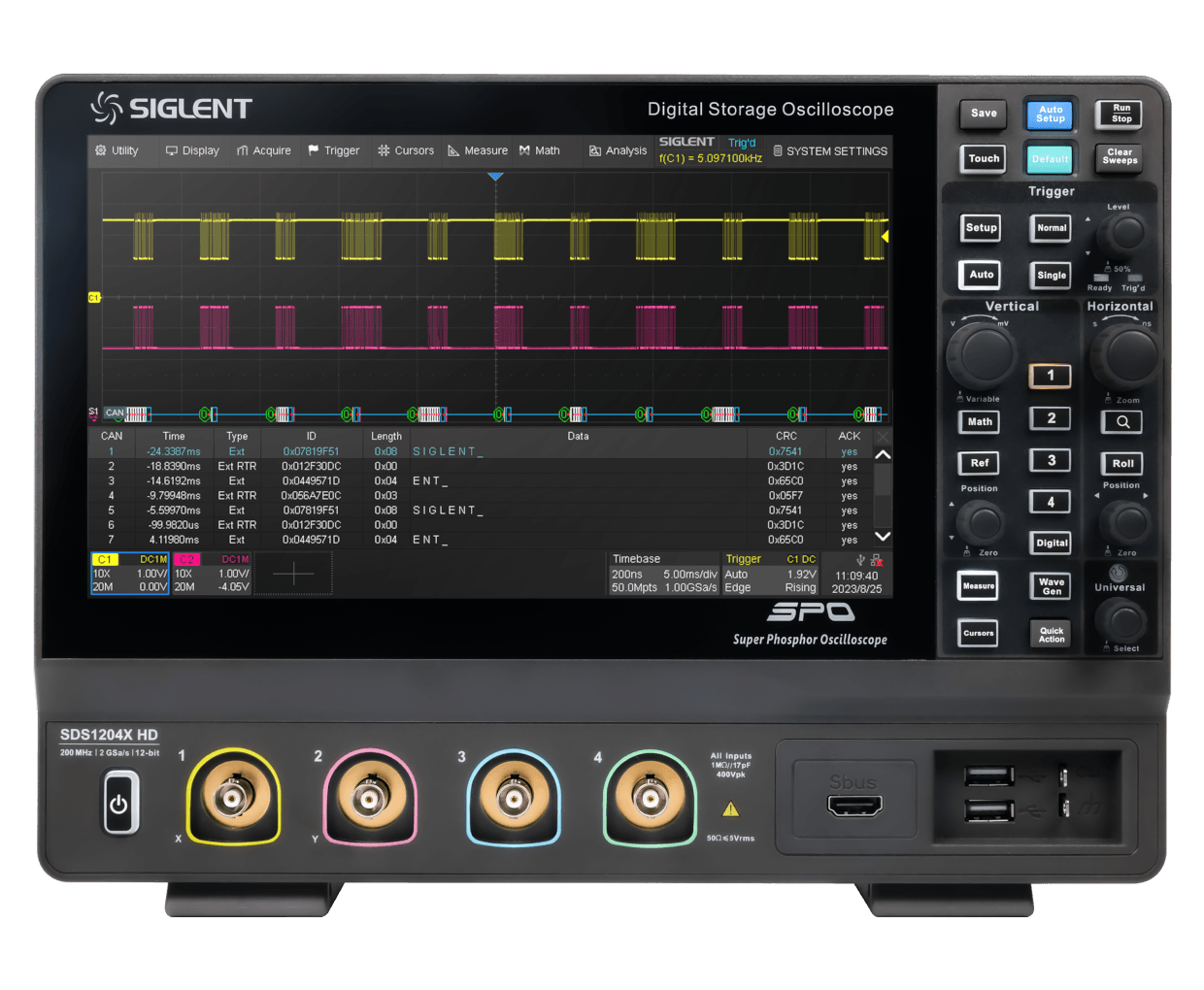

Siglent SDS1000X HD Digital Storage Oscilloscope 100/200 MHz 2/4 Channels | Osiloskop Digital
SDS1000X HD series oscilloscopes not only retain their educational and friendly characteristics, but also improve their performance.
Available models include SDS1102X HD, SDS1104X HD, SDS1202X HD, SDS1204X HD.
SDS1000X HD series oscilloscopes not only retain their educational and friendly characteristics, but also improve their performance. The bandwidth is extended to100 MHz to 200 MHz to meet a wider range of teaching and experimental needs. The high-resolution display in HD mode makes the waveform more delicate and improves the learning experience.
Key Features
- Bandwidth:100MHz，200 MHz
- ADC:12-bit
- Real time sampling rate: 2 GSa/s
- Memory Depth: 100 Mpts/ch（One channel mode）
- Capture rate:500,000 wfm/s（Sequence Mode）
- Front ends with 70 μVrms noise floor @ 200 MHz bandwidth
Model & Varian
| Model | Bandwidth | Channels | Vertical Resolution | Sampling Rate | Memory Depth | Capture Rate |
|---|---|---|---|---|---|---|
| SDS1102X HD | 100 MHz | 2+EXT | 12-bit | 2 GSa/s | 100 Mpts/ch | 500,000 wfm/s |
| SDS1104X HD | 100 MHz | 4+EXT | 12-bit | 2 GSa/s | 100 Mpts/ch | 500,000 wfm/s |
| SDS1202X HD | 200 MHz | 2+EXT | 12-bit | 2 GSa/s | 100 Mpts/ch | 500,000 wfm/s |
| SDS1204X HD | 200 MHz | 4+EXT | 12-bit | 2 GSa/s | 100 Mpts/ch | 500,000 wfm/s |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Model Variants | SDS1102X HD, SDS1104X HD, SDS1202X HD, SDS1204X HD |
|---|---|
| Bandwidth | 100 MHz; 200 MHz |
| Channels | 2+EXT; 4+EXT |
| Vertical Resolution | 12-bit |
| Sampling Rate | 2 GSa/s |
| Memory Depth | 100 Mpts/ch |
| Capture Rate | 500,000 wfm/s |
