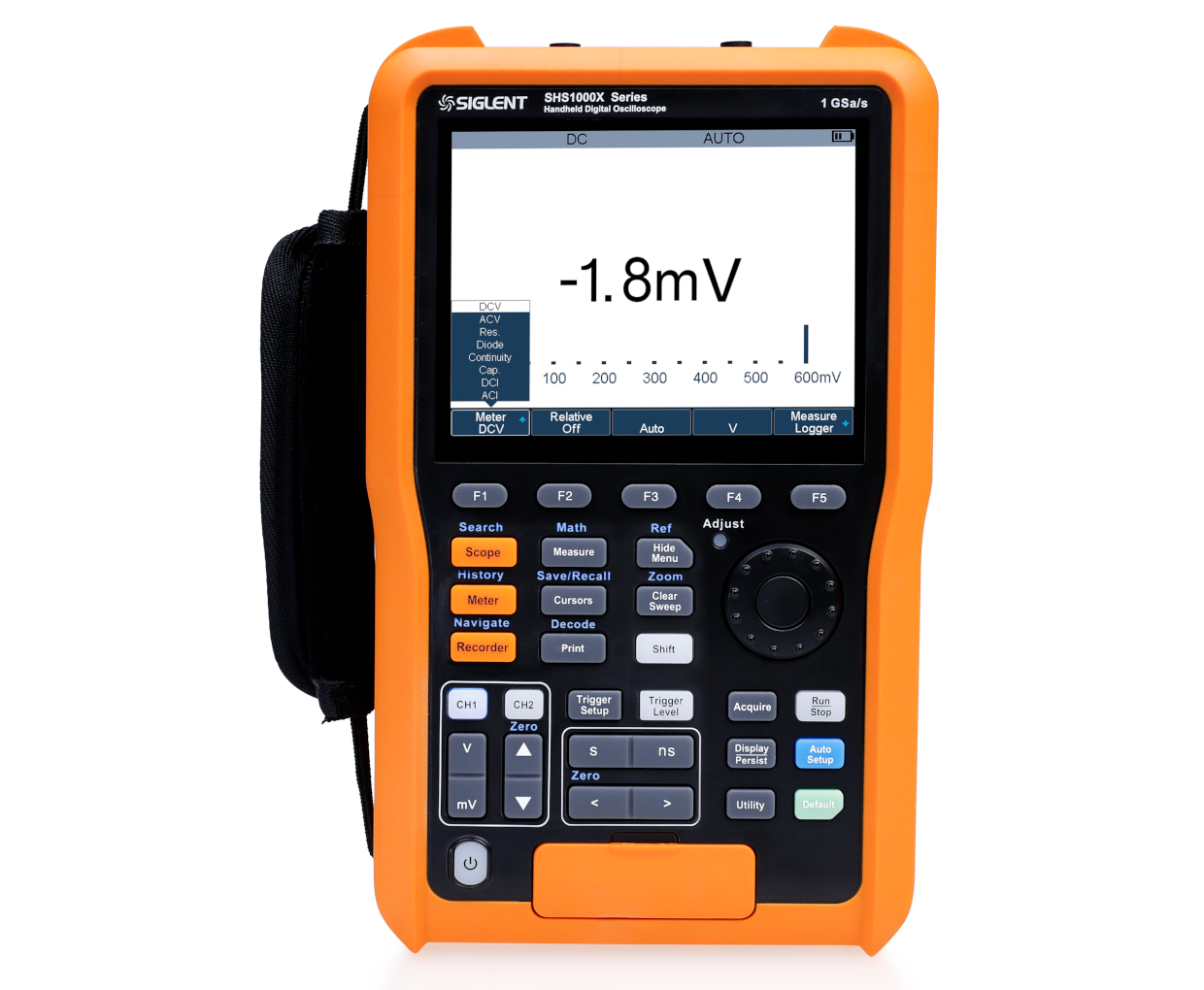

Siglent SHS1000X Handheld Digital Storage Oscilloscope 100/200 MHz 2 Channels | Osiloskop Genggam
SHS1000X series is a high-performance hand-held oscillograph carefully built by SIGLENT, which provides wide-band selection from 100 MHz to 200 MHz to meet diversified…
Available models include SHS1102X, SHS1202X.
SHS1000X series is a high-performance hand-held oscillograph carefully built by SIGLENT, which provides wide-band selection from 100 MHz to 200 MHz to meet diversified measurement requirements. Its unique double isolated channel design ensures the safety and accuracy in the measurement process. With a real-time sampling rate of up to 1 GSa/s and a storage depth of 12 Mpts, it can capture the rapidly changing signal details. Combined with the built-in multimeter function and recorder, SHS1000X series has become a right-hand man for engineers to conduct on-site testing and analysis, helping to improve work efficiency and accuracy.
Key Features
- Isolation voltage:CAT II 1000 Vrms, CAT III 600 Vrms,
- Integrated oscilloscope, serial trigger and decoder, spectrum analysis, data logger, and multimeter functions into a convenient and portable design
- 100 MHz or 200 MHz bandwidth models
- Sample rate of 1 GSa/s (single-channel)/500 MSa/s (two-channels)
- Record length up to 12 Mpts.
- Hardware-based true RMS multimeter
- IP51 dust/water resistance certified
Model & Varian
| Model | Bandwidth | Channels | Vertical Resolution | Sampling Rate | Memory Depth | Capture Rate |
|---|---|---|---|---|---|---|
| SHS1102X | 100 MHz | 2 | 8-bit | 1 GSa/s | 12 Mpts | 400,000 wfm/s |
| SHS1202X | 200 MHz | 2 | 8-bit | 1 GSa/s | 12 Mpts | 400,000 wfm/s |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Model Variants | SHS1102X, SHS1202X |
|---|---|
| Bandwidth | 100 MHz; 200 MHz |
| Channels | 2 |
| Vertical Resolution | 8-bit |
| Sampling Rate | 1 GSa/s |
| Memory Depth | 12 Mpts |
| Capture Rate | 400,000 wfm/s |
