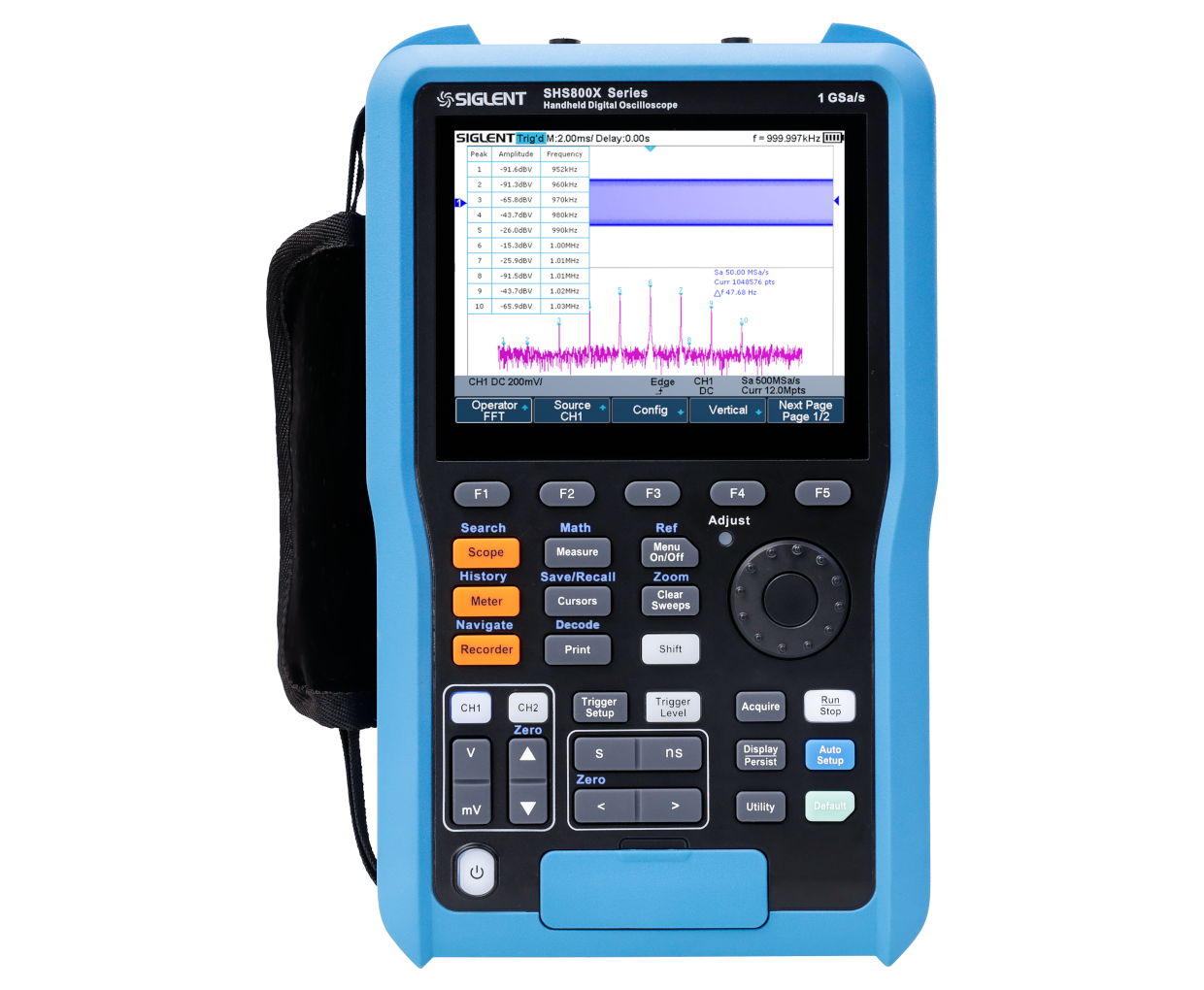

Siglent SHS800X Handheld Digital Storage Oscilloscope 100/200 MHz 2 Channels | Osiloskop Genggam
SHS800X series hand-held oscilloscope has won wide recognition in the market for its high cost performance and excellent performance.
Available models include SHS810X, SHS820X.
SHS800X series hand-held oscilloscope has won wide recognition in the market for its high cost performance and excellent performance. This series provides bandwidth selection from 100 MHz to 200 MHz, which is suitable for various application scenarios. Its dual-channel design combines the sampling rate of 1 GSa/s and the storage depth of 12 Mpts to ensure the integrity and accuracy of the signal.
Key Features
- Integrated oscilloscope, serial trigger and decoder, spectrum analysis, data logger and multimeter functions into a convenient and portable design
- 100 MHz or 200 MHz bandwidth models
- Sampling rate of 1 GSa/s (single-channel)/500 MSa/s (two-channels)
- Record length up to 12 Mpts
- Waveform recording up to 22 hours
- IP51 dust/water resistance certified
Model & Varian
| Model | Bandwidth | Channels | Vertical Resolution | Sampling Rate | Memory Depth | Capture Rate |
|---|---|---|---|---|---|---|
| SHS810X | 100 MHz | 2 | 8-bit | 1 GSa/s | 12 Mpts | 400,000 wfm/s |
| SHS820X | 200 MHz | 2 | 8-bit | 1 GSa/s | 12 Mpts | 400,000 wfm/s |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Model Variants | SHS810X, SHS820X |
|---|---|
| Bandwidth | 100 MHz; 200 MHz |
| Channels | 2 |
| Vertical Resolution | 8-bit |
| Sampling Rate | 1 GSa/s |
| Memory Depth | 12 Mpts |
| Capture Rate | 400,000 wfm/s |
