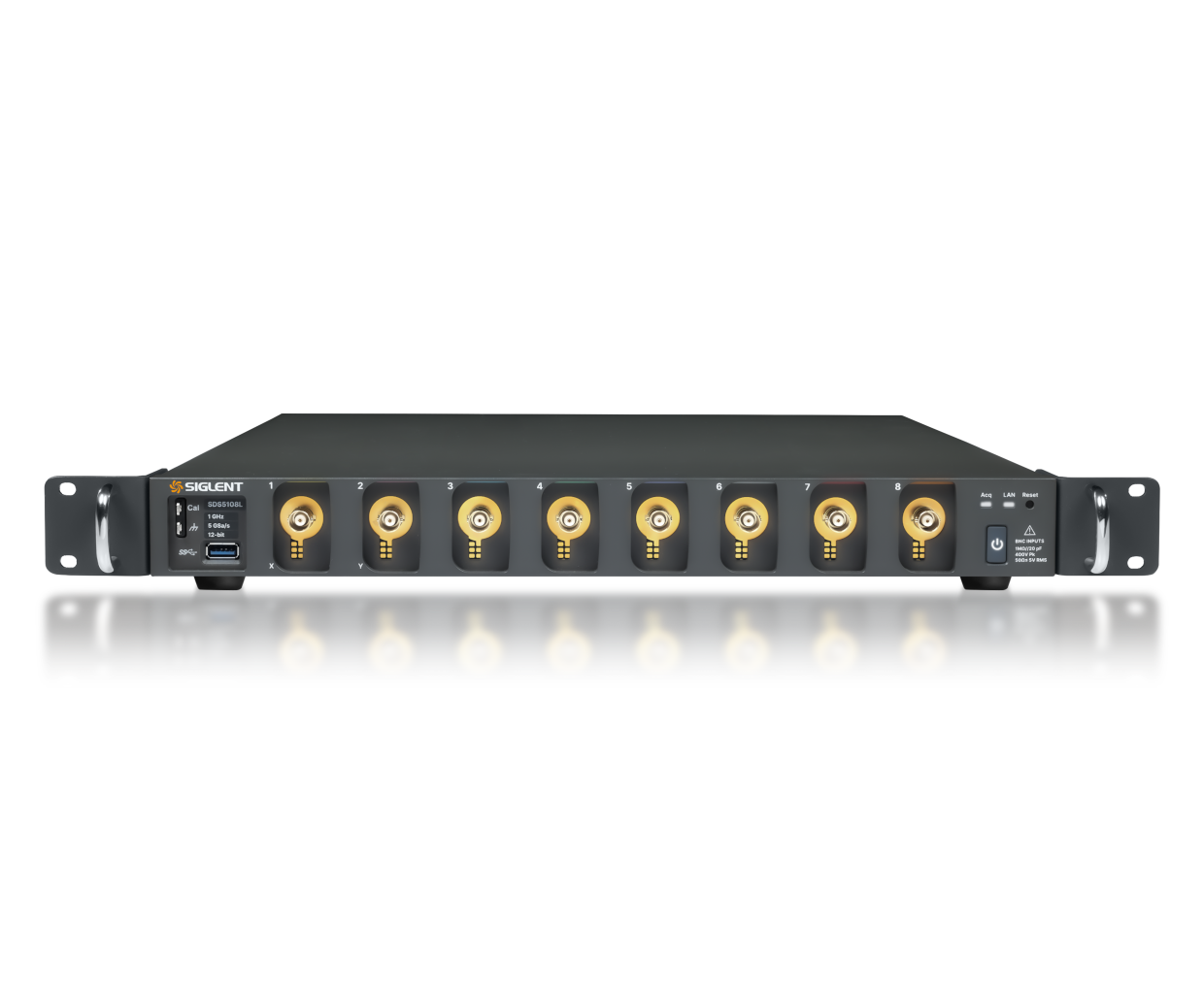

Siglent SDS5000L Digital Storage Oscilloscope 350 MHz to 1 GHz 8 Channels | Osiloskop Digital
SDS5000L are available in 8 channels, bandwidths of 350 MHz, 500 MHz and 1 GHz, have 12-bit ADCs with sample rate up to 5 GSa/s, maximum record length of 2.5 Gpts/ch.
Available models include SDS5038L, SDS5058L, SDS5108L.
SDS5000L are available in 8 channels, bandwidths of 350 MHz, 500 MHz and 1 GHz, have 12-bit ADCs with sample rate up to 5 GSa/s, maximum record length of 2.5 Gpts/ch. Multiple SDS5000L modules can be synchronized using a 64-channel distributor (SYN64) to form a high-channel-count acquisition system scalable up to 512 channels.
Key Features
- Bandwidth：1 GHz, 500 MHz, 350 MHz
- Memory depth： Up to 2.5 Gpts/ch waveform length
- ADC：12-bit
- Real time sampling rate： Up to 5 GSa/s
- Waveform capture rates：Up to 160,000 wfm/s
Model & Varian
| Model | Bandwidth | Channels | Vertical Resolution | Sampling Rate | Memory Depth | Capture Rate |
|---|---|---|---|---|---|---|
| SDS5038L | 350 MHz | 8 + EXT | 12-bit | 5 GSa/s | 2.5 Gpts/ch | 650,000 wfm/s |
| SDS5058L | 500 MHz | 8 + EXT | 12-bit | 5 GSa/s | 2.5 Gpts/ch | 650,000 wfm/s |
| SDS5108L | 1 GHz | 8 + EXT | 12-bit | 5 GSa/s | 2.5 Gpts/ch | 650,000 wfm/s |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Model Variants | SDS5038L, SDS5058L, SDS5108L |
|---|---|
| Bandwidth | 350 MHz; 500 MHz; 1 GHz |
| Channels | 8 + EXT |
| Vertical Resolution | 12-bit |
| Sampling Rate | 5 GSa/s |
| Memory Depth | 2.5 Gpts/ch |
| Capture Rate | 650,000 wfm/s |
