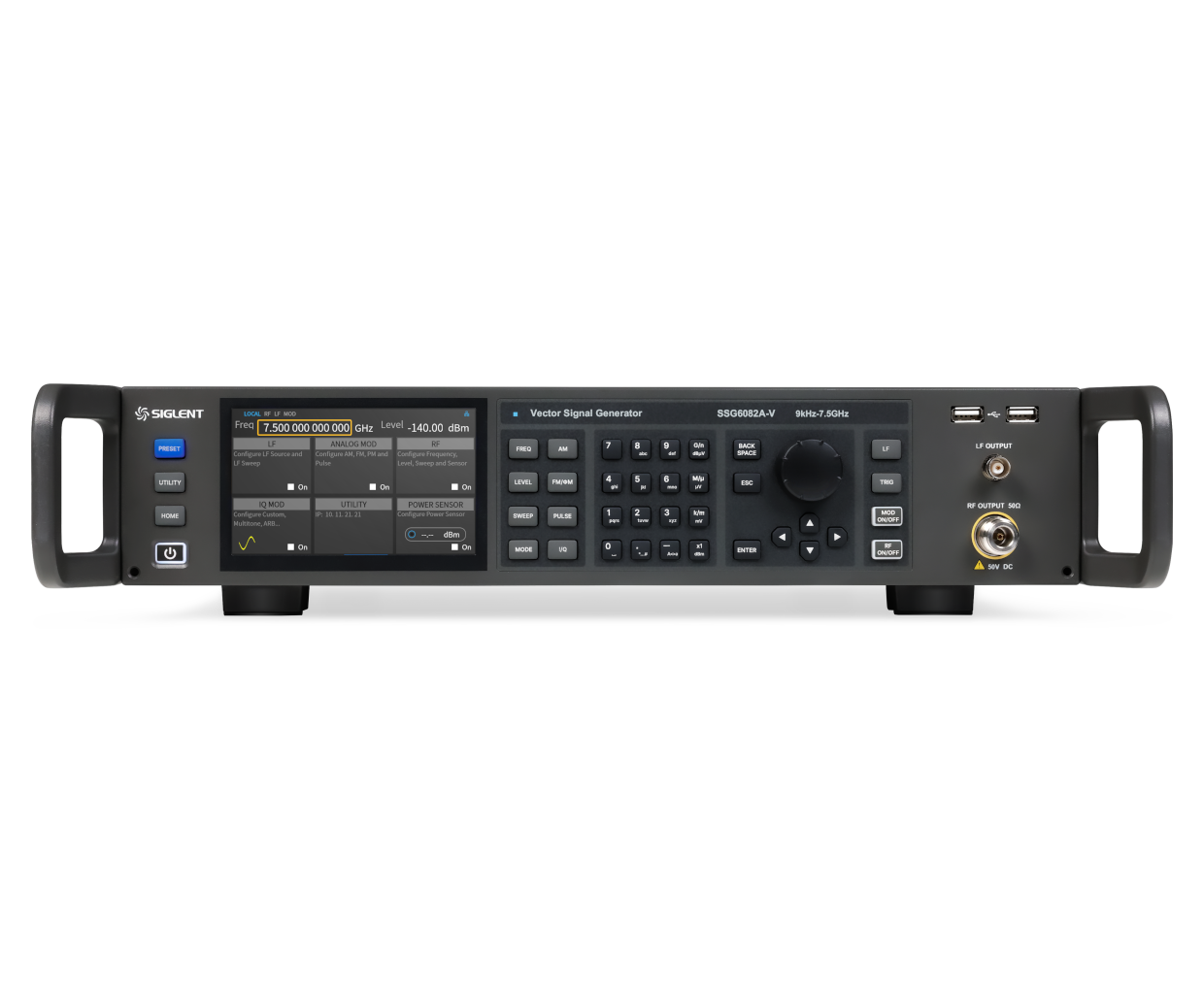

Siglent SSG6082A-V RF Signal Generator 9 kHz to 8 GHz | Generator Sinyal RF
The SSG6082A-V Vector Signal Generator delivers an output frequency range of 9 kHz to 8 GHz, supporting AM, FM, and PM analog modulation, as well as pulse modulation and pulse…
The SSG6082A-V Vector Signal Generator delivers an output frequency range of 9 kHz to 8 GHz, supporting AM, FM, and PM analog modulation, as well as pulse modulation and pulse sequence generation. Equipped with an internal 500 MHz bandwidth IQ baseband source, it combined with SigIQPro PC software to generate common digital modulated signals and communication protocol signals such as 5G NR, WLAN, LTE, BLUETOOTH, and IoT protocols. With factory calibration, the RF output exhibits excellent 1 GHz broadband characteristics and good ACPR performance, making it suitable for various applications in R&D, production, and other scenarios.
Key Features
- Output Frequency Range:CW MODE 9 kHz to 8 GHz；IQ MODE 10 MHz to 8 GHz
- Level Setting Range:-140 dBm to 30 dBm
- Phase Noise:< -132 dBc/Hz @ 1 GHz, offset 10 kHz (typical value)
- RF modulation bandwidth 1 GHz
- Support common protocols such as LTE, 5G NR and WLAN, etc.
Spesifikasi
| Frequency Range | 9kHz~8GHz |
|---|---|
| I/Q Bandwidth | Standard: 250 MHz; Optional: 500 MHz |
| Frequency Resolution | 0.001 Hz |
| I/Q Modulation | Included |
| Max output power | +30 dBm |
| Phase Noise | ＜-132 dBc/Hz@1 GHz，offset 10 kHz(typ.) |
| Display | 5-inch capacitive touchscreen |
| Interface | USB-HOST、USB-DEVICE、 LAN、GPIB(optional) |
