Tektronix Osiloskop

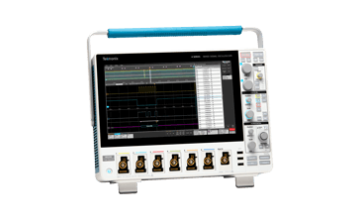

Tektronix 4 Series B MSO — Osiloskop Mixed Signal 4/6 Kanal
Osiloskop 4 Series B MSO yang serbaguna memiliki performa untuk menangani tantangan desain yang rumit dengan antarmuka pengguna yang intuitif. Dengan sistem prosesor baru yang lebih cepat, alat ini memberikan…
Spesifikasi Utama
- BandwidthUp to1.5GHz
- Record lengthUp to62.5M
- ANALOG CHANNELS4or6
- Vertical Resolution12bits
Gambaran Umum
Osiloskop 4 Series B MSO yang serbaguna memiliki performa untuk menangani tantangan desain yang rumit dengan antarmuka pengguna yang intuitif. Dengan sistem prosesor baru yang lebih cepat, alat ini memberikan pengukuran akurat yang lebih cepat serta beragam alat analisis yang mumpuni.
Spesifikasi
| Bandwidth | Up to1.5GHz |
| Record length | Up to62.5M |
| ANALOG CHANNELS | 4or6 |
| Vertical Resolution | 12bits |
Aplikasi
Tektronix Tektronix 4 Series B MSO — aplikasi utama dari pabrikan:
Embedded serial bus analysis
Serial bus decode and trigger options transform the 4 Series MSO into an indispensable tool for debugging serial buses with automatic decode, trigger, and search. Here are a few examples:
- I 2 C, SPI
- I3C
- RS-232 / 422 / 485 / UART
- USB 2.0
- Ethernet
Power integrity and power management
Today’s boards can have 20 or more power rails, many of which are less than a few volts with strict noise limits.
- Up to 6 analog input channels
- Compatible low-noise power-rail probes
- Decoding options for SVID and SPMI
Power supply measurements and analysis
Even with lower standby power, faster switching and stricter noise limits, the 4 Series can speed up power supply troubleshooting, optimization and validation.
- AC line and harmonics measurements
- Switching loss analysis
- DC power rails measurements
- Bode plots and power supply rejection ratio
- Wide range of current, power rail, differential, and optically-isolated probes
3-phase power analysis
Make stable 3-phase power measurements even on pulse-width modulated waveforms. The 3-phase analysis software makes it easy.
- Up to 6 analog input channels
- 3-phase wye, delta, and single-phase wiring configurations
- Comprehensive power measurements
- Harmonics analysis
Automotive ECU design
Automotive systems demand robust communications between ECUs, sensors and actuators.
- Mixed signal views to look beyond processors at sensors, actuators, switches, and power
- Combine waveform and spectrum analysis for fast noise hunting with optional Spectrum View
- Decode and trigger on CAN, CAN FD, LIN, FlexRay, SENT or PSI5 traffic
Model & Varian
Tektronix 4 Series B MSO — pilih model yang sesuai, minta penawaran via WhatsApp.
| Model | Analog Bandwidth | Analog Channels | Digital Channels | Sample Rate | Record Length | |
|---|---|---|---|---|---|---|
| MSO44B | 200 MHz to 1.5 GHz | 4 | Up to 32 (optional) | 6.25 GS/s | 31.25 M to 62.5 M | Tanya Harga |
| MSO46B | 200 MHz to 1.5 GHz | 6 | Up to 48 (optional) | 6.25 GS/s | 31.25 M to 62.5 M | Tanya Harga |
