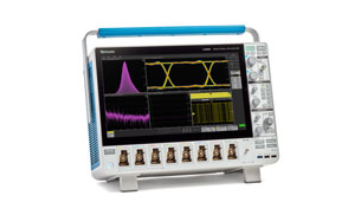

Tektronix 6 Series B MSO — Osiloskop Mixed Signal 4/6/8 Kanal
Troubleshoot dan validasi desain berkecepatan tinggi dengan bandwidth mulai 1 GHz hingga 10 GHz. Dapatkan fleksibilitas, resolusi tinggi, dan kumpulan alat analisis lengkap untuk menangani desain sinyal campuran yang kompleks…
Spesifikasi Utama
- BandwidthUp to 10 GHz
- Sample RateUp to 50 GS/s
- Record LengthUp to 1 G
- Vertical Resolution12 bits
Gambaran Umum
Troubleshoot dan validasi desain berkecepatan tinggi dengan bandwidth mulai 1 GHz hingga 10 GHz. Dapatkan fleksibilitas, resolusi tinggi, dan kumpulan alat analisis lengkap untuk menangani desain sinyal campuran yang kompleks dengan percaya diri.
Spesifikasi
| Bandwidth | Up to 10 GHz |
| Sample Rate | Up to 50 GS/s |
| Record Length | Up to 1 G |
| Vertical Resolution | 12 bits |
Aplikasi
Tektronix 6 Series B MSO — aplikasi utama dari pabrikan:
Embedded Design and Debug
Debug and perfect your designs with serial bus decoders and power analysis. Save time and prevent errors compared to manual or offline decoding and analysis.
Power Integrity and Power Management
Today’s boards can have 20 or more power rails. Many are less than 3 V and most have noise limits. Accurate noise measurements demand special attention.
- Low measurement system noise
- Compatible with low-noise TPR Series power-rail probes
- Decoding options for SVID and SPMI
- Impedance measurements
Jitter Analysis
Clocks are the heart of every embedded system and digital communication link. Jitter and other clock distortion can impact system operation, and getting to the root cause can be challenging without the right analysis tools.
- Standard phase noise, TIE, and frequency plots and histograms
- Advanced Jitter Analysis (option DJA) adds jitter decomposition and clock recovery
- Signal Integrity Modeling Software (option SIM) enables de-embed/embed for high-speed signals
Synchronized multi-channel spectrum analysis
Unlock exciting capabilities with 4, 6 or 8 channels of spectrum analysis, and hardware digital downconverters (DDCs) in parallel with time domain signal processing.
- Any analog channel can be viewed as a waveform, spectrum, or both
- Plot and trigger on changes in RF frequency or magnitude
- Spectrums and time domain waveforms are synchronized to correlate RF and time domain events
- Spectrum controls such as center frequency and RBW are completely independent of time domain controls
Model & Varian
6 Series B MSO — pilih model yang sesuai, minta penawaran via WhatsApp.
| Model | Analog Bandwidth | Sample Rate | Record Length | Analog Channels | Digital Channels | Function Generator Output | |
|---|---|---|---|---|---|---|---|
| MSO64B | 1 GHz - 10 GHz | Up to 50 GS/s | 62.5 M - 1 G | 4 | Up to 32 (optional) | 1 (optional) | Tanya Harga |
| MSO66B | 1 GHz - 10 GHz | Up to 50 GS/s | 62.5 M - 1 G | 6 | Up to 48 (optional) | 1 (optional) | Tanya Harga |
| MSO68B | 1 GHz - 10 GHz | Up to 50 GS/s | 62.5 M - 1 G | 8 | Up to 64 (optional) | 1 (optional) | Tanya Harga |
