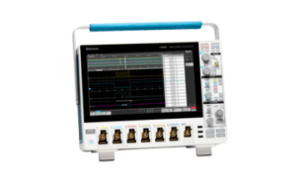

Tektronix 5 Series B MSO Mixed Signal Oscilloscope 4/6/8 Channels | Osiloskop Digital
Get a complete view of your design with high-fidelity waveforms, insightful measurements, unique spectrum analysis, and flexible probing.
Available models include MSO54B, MSO56B, MSO58B.
Get a complete view of your design with high-fidelity waveforms, insightful measurements, unique spectrum analysis, and flexible probing. The 5 Series B MSO combines 4, 6, or 8 analog channels with FlexChannel® technology for mixed-signal measurements.
Insightful Measurements
See more signal detail with high-resolution analog-to-digital converters and synchronized multi-channel spectrum analysis.
- 12-bit resolution at 1.25 GHz; 16-bit resolution at 50 MHz
- Built-in DDCs enable multi-channel, synchronized spectrum analysis
- Results tables, measurement statistics, histograms, and trend plot views
Advanced Solutions
Adapt the 5 Series B MSO to your workflow with application-specific measurements and analysis software options.
- Support for over 25 serial protocols
- Advanced single-phase and three-phase power analysis packages
- Measurement tools for signal integrity and power integrity
- Optional Windows® operating system for running PC software
More Ways to See More Signals
Versatile inputs and advanced probing technology help you observe more signals in a single test setup.
- Up to 8 FlexChannel™ inputs for up to 8 analog or 64 digital signals, plus an external trigger input
- Includes 500 MHz or 1 GHz probes with 3.9 pF input capacitance
- TekVPI® probe interface supports active, differential, isolated, and current probes
Model & Varian
| Model | Analog Bandwidth | Sample Rate | Record Length | Analog Channels | Digital Channels | Function Generator Output |
|---|---|---|---|---|---|---|
| MSO54B | 350 MHz - 2 GHz | 6.25 GS/s | 62.5 M - 500 M | 4 | Up to 32 (optional) | 1 (optional) |
| MSO56B | 350 MHz - 2 GHz | 6.25 GS/s | 62.5 M - 500 M | 6 | Up to 48 (optional) | 1 (optional) |
| MSO58B | 350 MHz - 2 GHz | 6.25 GS/s | 62.5 M - 500 M | 8 | Up to 64 (optional) | 1 (optional) |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Model & Series | 5 Series B MSO 8 Channel Mixed Signal Oscilloscope |
|---|---|
| Analog Bandwidth | 350 MHz - 2 GHz |
| Sample Rate | 6.25 GS/s |
| Record Length | 62.5 M - 500 M |
| Analog Channels | 4 / 6 / 8 |
| Digital Channels | Up to 32 (optional) / Up to 48 (optional) / Up to 64 (optional) |
| Function Generator Output | 1 (optional) |
Aplikasi
Protocol Decoding and Analysis
5 Series B MSO mendukung kebutuhan protocol decoding and analysis dengan fungsi pengukuran dan analisis yang tersedia pada konfigurasi produk.
- Pengujian dan analisis sinyal
- Debugging dan validasi desain
- Konfigurasi disesuaikan dengan kebutuhan aplikasi
Embedded Design
5 Series B MSO mendukung kebutuhan embedded design dengan fungsi pengukuran dan analisis yang tersedia pada konfigurasi produk.
- Pengujian dan analisis sinyal
- Debugging dan validasi desain
- Konfigurasi disesuaikan dengan kebutuhan aplikasi
Power Supply Sequencing
5 Series B MSO mendukung kebutuhan power supply sequencing dengan fungsi pengukuran dan analisis yang tersedia pada konfigurasi produk.
- Pengujian dan analisis sinyal
- Debugging dan validasi desain
- Konfigurasi disesuaikan dengan kebutuhan aplikasi
