ECON EDM-LS Series Electro-Dynamic Shaker | Long-stroke

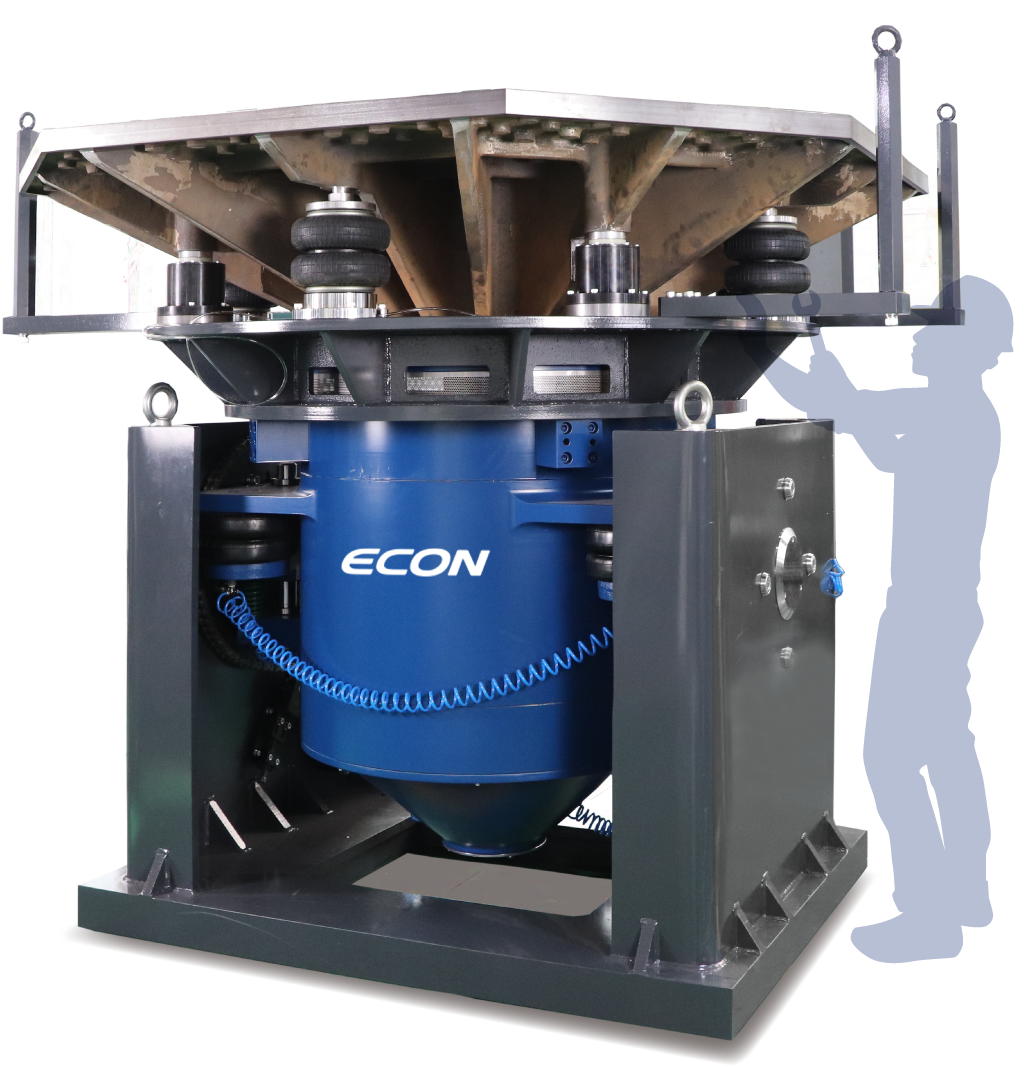

EDM-LS Series Electro-Dynamic Shaker
Available models include EDM-3200LS, EDM-5000LS.
EDM-LS series electro-dynamic vibration test system is suitable for vibration test requirements with long stroke. The frequency range of this series is 1-2500Hz, Max. acceleration up to 800m/s² (no-load), and Max. speed up to 1.8m/s.
The system is mainly used in aerospace, transportation and other fields. It can meet the test requirements of random, sine and impact, and is suitable for the transportation environment test specifications stipulated by ISTA.
Features
- The unique guidance system and support system for EDM-LS series;
- Max.Displacement: 100mm;
- Various models from 30KN to 50KN;
- Easy operation;
- Armature Diameter range from 350mm to 445mm;
- Max.Load: 800kg;
Model & Varian
| Model | Sine Force Peak (kN) | Frequency range (Hz) | Max. Acceleration (m/s²) | Max. Velocity (m/s) | Max. Displacement pp(mm) | Max. Load (kg) | Effective armature mass (kg) |
|---|---|---|---|---|---|---|---|
| EDM-3200LS | 30 | 1~2500 | 750 | 1.8 | 100 | 500 | 40 |
| EDM-5000LS | 50 | 1~2500 | 800 | 1.8 | 100 | 800 | 63 |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Sine Force Peak (kN) | 30 to 50 |
|---|---|
| Frequency range (Hz) | 1 to 2,500 |
| Max. Acceleration (m/s²) | 750 to 800 |
| Max. Velocity (m/s) | 1.8 |
| Max. Displacement pp(mm) | 100 |
| Max. Load (kg) | 500 to 800 |
| Effective armature mass (kg) | 40 to 63 |
