ECON EDS series Electro-Dynamic Shaker | Shaker 3–6 kN

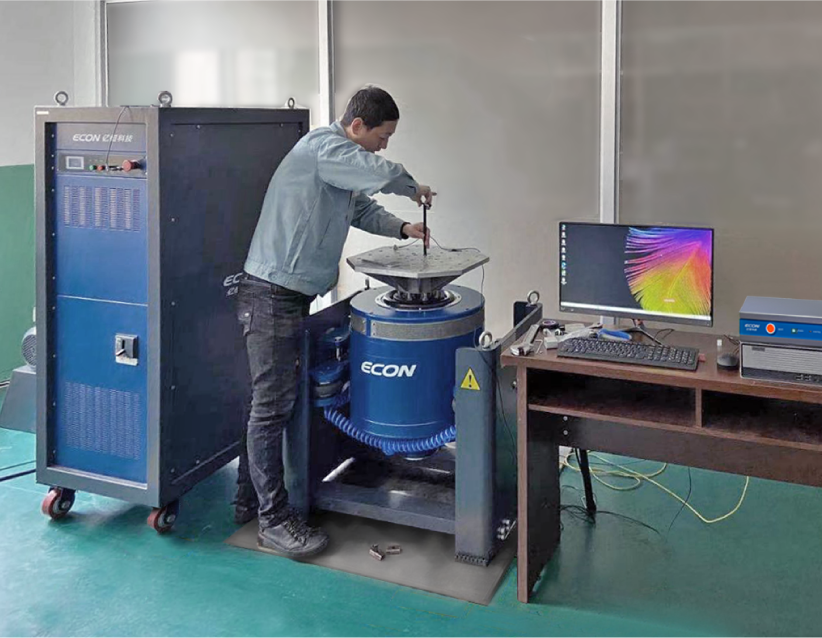

EDS series Electro-Dynamic Shaker
Available models include EDS-300, EDS-600.
ECON introduces a new electro-dynamic vibration Test system with a wide frequency range, excellent index, high reliability, small footprint, convenient movement, simple operation and many other advantages.
Based on the advanced closed-loop single-axis or multiaxis vibration controller, the shaker with low noise and foundation-free design, and the fully digital power amplifier. It can accurately simulate the effect of actual vibration and shock excitation on the reliability of the Test items.
Sine Force Peak : 3~6 kN
Features
- Sine force range from 3kN to 6kN
- Advanced design of trunnion isolation
- Double magnetic circuit design
- Optional foundation-free design available
- High reliability with mean time between failures(MTBF)＞ 6,000 hours
- Power amplifier noise -68dB
- More effecitve cooling structural design
- Fully digital power amplifier, easy connection
- Sine, random,shock and mixed mode testing supported
- Meet different testing conditions from single axis to multi axis
Model & Varian
| Model | Sine force Peak (kN) | Frequency range (Hz) | Max. Acceleration (m/s²) | Max. Velocity (m/s) | Max. Displacement pp(mm) | Max. Load (kg) | Effective armature mass (kg) |
|---|---|---|---|---|---|---|---|
| EDS-300 | 3 | 5~4000 | 981 | 1.8 | 25.4 | 120 | 3 |
| EDS-600 | 6 | 5~3500 | 981 | 1.8 | 51 | 300 | 6 |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Sine force Peak (kN) | 3 to 6 |
|---|---|
| Frequency range (Hz) | 5 to 4,000 |
| Max. Acceleration (m/s²) | 981 |
| Max. Velocity (m/s) | 1.8 |
| Max. Displacement pp(mm) | 25.4 to 51 |
| Max. Load (kg) | 120 to 300 |
| Effective armature mass (kg) | 3 to 6 |
