ECON MIMO Multi-Channel Vibration Controller | Kontrol multi-input multi-output
Multi-Channel Vibration Controller
Available models include MI-8206, MI-8118.
“MIMO”
Multiple Input Multiple Output
Up to 136 channels / per unit
Up to 16 drive channels
Multi-controller that enables multiple inputs and outputs

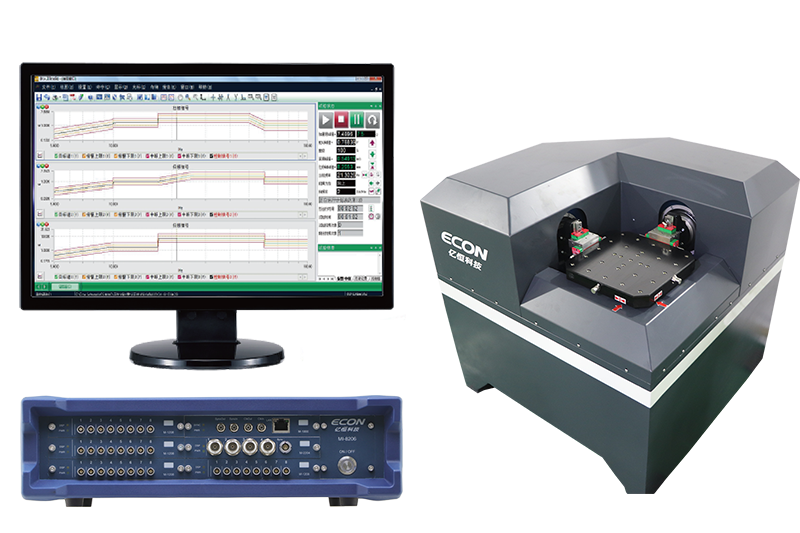

The MIMO vibration controller uses multi-DSP parallel processing technology and distributed modular design to control various vibration modes. It combines matrix decoupling, diagonal-first matrix compensation, partial coherence techniques, and complex heterodyne methods. Over 20 years, advanced technologies have been developed for vibration control technologies like MIMO sine wave, random, classic shock, transient shock, and road simulation. MIMO vibration controllers are suitable for controlling electric and tric/hydraulic vibration tables, with output drive and input acquisition modules available for up to 16 drive channels and 136 input channel arrangements.
Full control and auxiliary functions for signals in multi-input, multi-output vibration tests improve test accuracy.
Features
- ・Adaptive matrix control
- ・Sine wave test uses segmentation identification technology, resulting in high identification accuracy
- ・Network cable connection has a PXI bus structure and can be disconnected and reconnected without data loss, making it highly reliable
- ・The software runs on Windows and is easy to operate using the GUI shaking table limit, emergency stop button, etc cable
- ・High safety features such as open loop detection, effective value cutoff, limit line excess check, drive limit,
- ・No special board or driver software required. Testing is possible by simply connecting a computer and network
- ・Automatically generate test report after test completion
Model & Varian
| Model | Number of slots | Input channel | Output channel | Analog filtering | Digital filtering | Voltage range | Resolution | Dynamic range | Channel matching | Sampling frequency | Coupling |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MI-8206 | 5 | Up to 40 channels/standalone | 0 to 16 channels (signal source) | Independent analog anti-aliasing filter | Independent 160dB/Oct digital filter | ±10 PEAK | 24bit | 120dB | Phase < 1 degree, amplitude < ±0.05dB (DC~20KHz) | 204.8kHz simultaneous parallel sampling for each channel | DC differential, DC single-ended, AC differential, AC single-ended, IEPE, TEDS (optional) |
| MI-8118 | 17 | Up to 136 channels/standalone | 0 to 16 channels (signal source) | Independent analog anti-aliasing filter | Independent 160dB/Oct digital filter | ±10 PEAK | 24bit | 120dB | Phase < 1 degree, amplitude < ±0.05dB (DC~20KHz) | 204.8kHz simultaneous parallel sampling for each channel | DC differential, DC single-ended, AC differential, AC single-ended, IEPE, TEDS (optional) |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Number of slots | 5 to 17 |
|---|---|
| Input channel | Up to 40 channels/standalone; Up to 136 channels/standalone |
| Output channel | 0 to 16 channels (signal source) |
| Analog filtering | Independent analog anti-aliasing filter |
| Digital filtering | Independent 160dB/Oct digital filter |
| Voltage range | ±10 PEAK |
| Resolution | 24bit |
| Dynamic range | 120dB |
| Channel matching | Phase < 1 degree, amplitude < ±0.05dB (DC~20KHz) |
| Sampling frequency | 204.8kHz simultaneous parallel sampling for each channel |
| Coupling | DC differential, DC single-ended, AC differential, AC single-ended, IEPE, TEDS (optional) |
