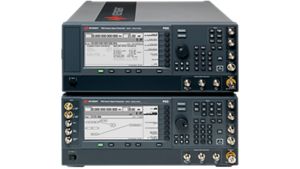

Keysight E8257D PSG Microwave Analog Signal Generator | Generator Sinyal Microwave PSG
PSG microwave analog signal generator with high output power and low phase noise, with frequency options starting at 250 kHz to 13 GHz.
Available models include E8257D, E8663D.
The E8257D is a fully synthesised PSG microwave analog signal generator with high output power and low phase noise.
Frequency coverage is set by option, starting at 250 kHz to 13 GHz, and the instrument emulates the command set of earlier Keysight signal generators.
Fitur Utama:
- Fully synthesised microwave analog signal generator
- High output power with low phase noise
- Frequency options starting at 250 kHz to 13 GHz
- Emulates commands for earlier Keysight signal generators
Model & Varian
| Model | Type | Frequency |
|---|---|---|
| E8257D | PSG microwave analog | 250 kHz to 13 GHz and above, option dependent |
| E8663D | PSG RF analog | 100 kHz to 9 GHz |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Instrument type | Fully synthesised microwave analog signal generator |
|---|---|
| Key characteristics | High output power, low phase noise |
| Compatibility | Emulates applicable commands for earlier Keysight signal generators |
| Memory | 14 MB of flash memory available for instrument states and sweep list files |
| Series | Keysight PSG signal generator |
| Harmonics | -25 dBc typical below 1 MHz; -28 dBc from 10 to below 60 MHz; -45 dBc with Option 1EH filters |
| Spectral purity | Spurious and harmonic performance specified at +10 dBm or maximum specified output power, whichever is lower |
| Phase noise warranty conditions | Warranted from 15 to 35 degrees C, excluding external mechanical vibration |
| Opsi | |
| E8257D-513 | Frequency range, 250 kHz to 13 GHz |
