Keysight AP5042A G3 Vector Signal Generator 100 kHz–40 GHz | Generator Sinyal Vektor
G3 vector signal generator multi-channel dengan 1 sampai 4 independent phase-coherent channels, internal I/Q modulator, dan frequency range sampai 40 GHz.
Available models include AP5041A, AP5042A.

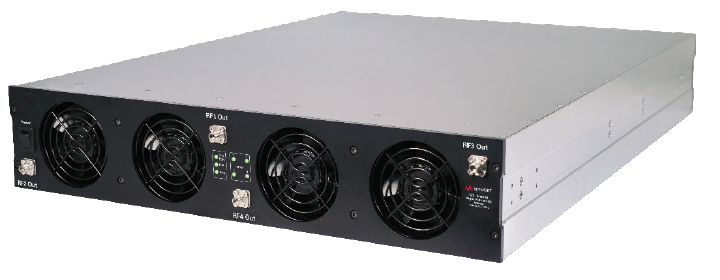

Keysight AP5042A adalah G3 vector signal generator multi-channel untuk pengujian RF dan microwave yang memerlukan beberapa output independent dengan phase coherence. Konfigurasi menyediakan 1, 2, 3, atau 4 channels dalam 2U rackmount enclosure.
Setiap channel menggunakan internal I/Q modulator dan dapat dikonfigurasi dengan frequency option 100 kHz sampai 4, 6, 12, 20, atau 40 GHz. AP5042A mendukung phase-coherent switching antarchannel, multi-device synchronization melalui 6 GHz clock, dan arbitrary waveform playback untuk automated test, MIMO, dan receiver testing.
Kemampuan utama:
- 1, 2, 3, atau 4 independent and phase-coherent channels
- Frequency range 100 kHz sampai 40 GHz, bergantung pada frequency option
- Internal I/Q modulator dengan sample rate 1 Hz sampai 500 MHz
- Phase-coherent switching antarchannel atau antarunit dengan Option SNC
- 6 GHz high-performance reference input/output untuk phase synchronization
- 2U rackmount enclosure dengan hingga empat RF outputs
Model & Varian
| Model | Channels | CW frequency range | I/Q sample rate | Form factor |
|---|---|---|---|---|
| AP5041A | 1 | 100 kHz to 4 / 6 / 12 / 20 / 40 GHz | 1 Hz to 500 MHz | Benchtop |
| AP5042A | 1, 2, 3, or 4 independent and phase coherent | 100 kHz to 4 / 6 / 12 / 20 / 40 GHz | 1 Hz to 500 MHz | 2U rackmount |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Channel count | 1, 2, 3, or 4 independent and phase coherent |
|---|---|
| CW frequency range | 100 kHz to 4 / 6 / 12 / 20 / 40 GHz (frequency option dependent) |
| Settable CW frequency range | 100 kHz to 4.15 / 6.6 / 12 / 20 / 43.5 GHz (option dependent) |
| Frequency resolution | 0.001 Hz |
| Internal I/Q sample rate | 1 Hz to 500 MHz |
| I/Q file resolution | 16 bits |
| Maximum RF (I + Q) bandwidth | 400 MHz (nominal) |
| Arbitrary waveform memory | 512 MSa without marker; 334 MSa with marker |
| Phase offset range | 0° to 360° |
| Phase offset resolution | 0.01° |
| RF transition time | 2.0 µs to 5.1 µs (configuration dependent) |
| RF output connector | SMA or 2.92 mm, connector option dependent |
| Dimensions | 88 mm H × 444 mm W × 594 mm L |
| Weight | < 22.5 kg |
| Opsi | |
| Option 001 | 1 channel |
| Option 002 | 2 channels |
| Option 003 | 3 channels |
| Option 004 | 4 channels |
| Option 504 | CW frequency range 100 kHz to 4 GHz |
| Option 506 | CW frequency range 100 kHz to 6 GHz |
| Option 512 | CW frequency range 100 kHz to 12 GHz |
| Option 520 | CW frequency range 100 kHz to 20 GHz |
| Option 540 | CW frequency range 100 kHz to 40 GHz |
| Option PHS | Phase-coherent switching |
| Option PCM | Phase-calibratable mode, supported to 20 GHz |
| Option SNC | 6 GHz high-performance reference input/output |
| Option FCP | Fast Control Port for I/Q data and PDW streaming |
| Option PMR | Pulse modulation |
| Option PDW | Pulse Descriptor Words |
