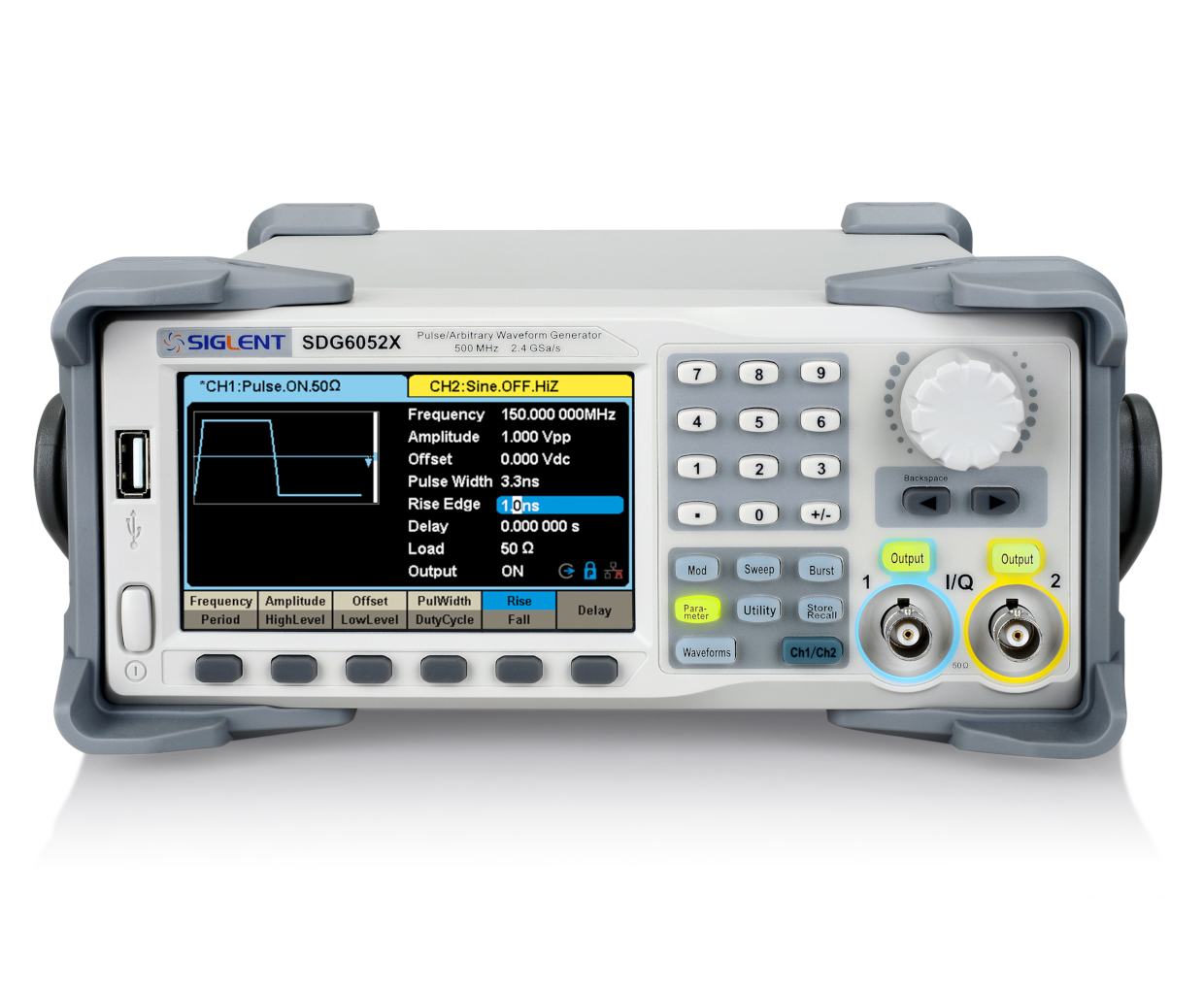

Siglent SDG6000X Waveform and Function Generator 200/350/500 MHz 2 Channels | Generator Fungsi/Bentuk Gelombang
SDG6000X series provides the highest frequency output of 500MHz, the maximum sampling rate is 2.4GSa/s, and it supports any wave length of 20 Mbps, ensuring accurate signal…
Available models include SDG6022X, SDG6032X, SDG6052X.
SDG6000X series provides the highest frequency output of 500MHz, the maximum sampling rate is 2.4GSa/s, and it supports any wave length of 20 Mbps, ensuring accurate signal generation and meeting diversified test requirements. SDG6000X has many functions, such as noise generation, IQ signal generation, PRBS code type and so on, and can output arbitrary waveforms point by point, so it is an ideal choice for scientific research, education and manufacturing.
Key Features
- Dual output channels，maximum 500 MHz output frequency
- 2.4 GSa/s Sampling rate, 16 bit vertical resolution
- Pulse frequency up to 150 MHz; Rise/Fall time adjustable, fastest 1ns
- TrueArb technology, Arbitrary wave length 2 ~ 20 Mpts
- Create baseband and IF IQ modulated waveforms (optional)
- PRBS, Nosie generator
Model & Varian
| Model | Max Output Frequency | Vertical Resolution | Waveform Length | Channels |
|---|---|---|---|---|
| SDG6022X | 200 MHz | 16-bit | 32pts ~ 20 Mpts | 2 |
| SDG6032X | 350 MHz | 16-bit | 32pts ~ 20 Mpts | 2 |
| SDG6052X | 500 MHz | 16-bit | 32pts ~ 20 Mpts | 2 |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Model Variants | SDG6022X, SDG6032X, SDG6052X |
|---|---|
| Max Output Frequency | 200 MHz; 350 MHz; 500 MHz |
| Vertical Resolution | 16-bit |
| Waveform Length | 32pts ~ 20 Mpts |
| Channels | 2 |
