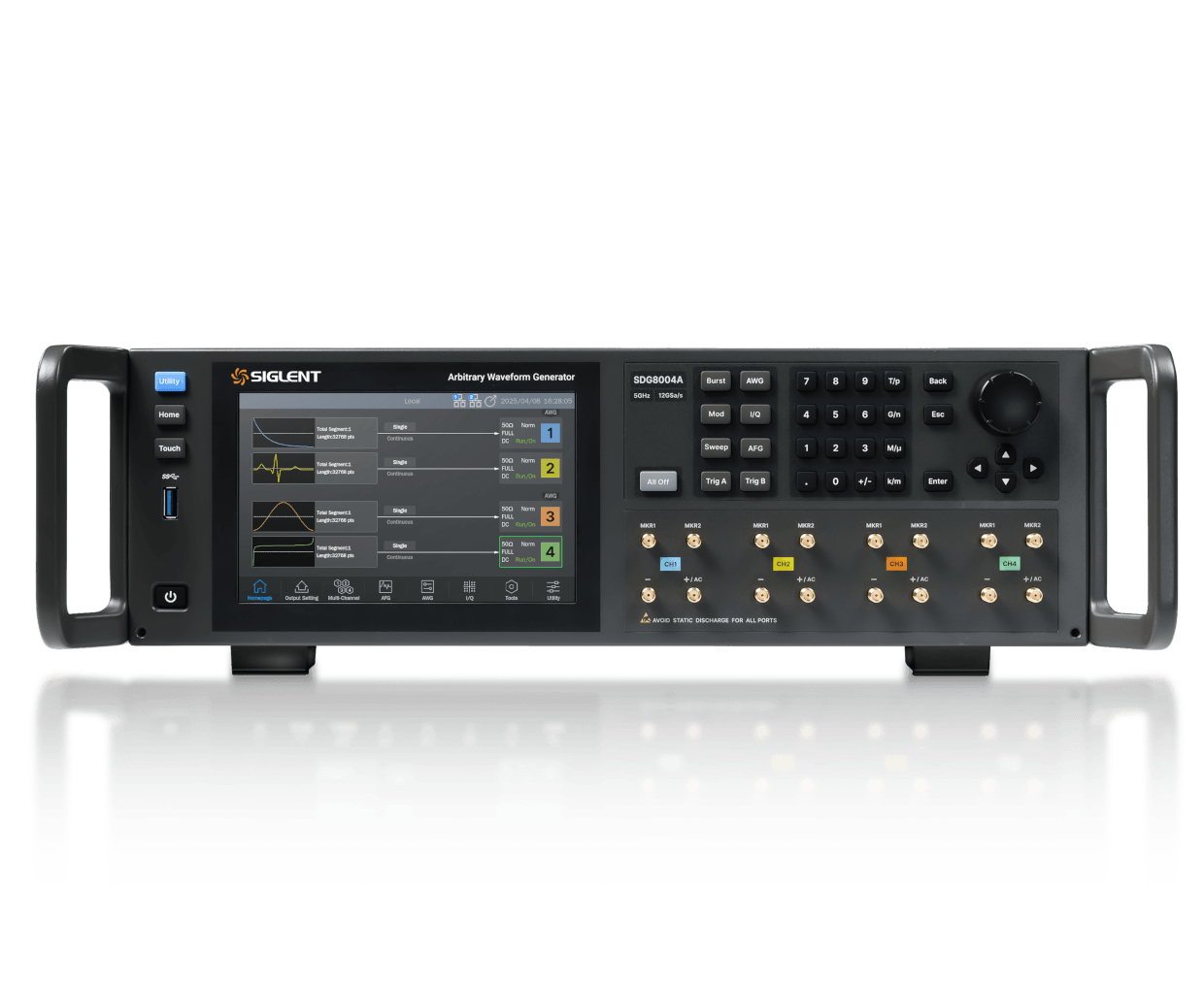

Siglent SDG8000A Waveform and Function Generator 4/5 GHz 2/4 Channels | Generator Fungsi/Bentuk Gelombang
The SDG8000A Series function/arbitrary waveform generators are available in 2-channel and 4-channel configurations, all featuring 16-bit vertical resolution, an interpolated…
Available models include SDG8002A, SDG8004A.
The SDG8000A Series function/arbitrary waveform generators are available in 2-channel and 4-channel configurations, all featuring 16-bit vertical resolution, an interpolated sampling rate of up to 12 GSa/s, a maximum output frequency of 5 GHz, and a modulation bandwidth of 2 GHz. All models include 4 GSa of deep memory per channel for extended waveform playback without compromising signal bandwidth, and support vector modulation and high-speed serial pattern generation.
Key Features
- 2/4-channel models
- Max output frequency: 4 GHz @ 10 GSa/s / 5 GHz @ 12 GSa/s sampling rate
- Vector signal generation up to 2 GHz modulation bandwidth
- Supports waveform output for Bluetooth, OFDM, IoT, LTE, and Wi-Fi
- 16-bit vertical resolution
- 196 built-in arbitrary waveforms
Model & Varian
| Model | Max Output Frequency | Sampling Rate | Vertical Resolution | Waveform Length | Channels |
|---|---|---|---|---|---|
| SDG8002A | 4 GHz@10 GSa/s，5 GHz@12 GSa/s | 10 GSa/s (interpolation), optional 12 GSa/s (interpolation) | 16-bit | 2 Gpts, optional 4 Gpts | 2 |
| SDG8004A | 4 GHz@10 GSa/s，5 GHz@12 GSa/s | 10 GSa/s (interpolation), optional 12 GSa/s (interpolation) | 16-bit | 2 Gpts, optional 4 Gpts | 4 |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Model Variants | SDG8002A, SDG8004A |
|---|---|
| Max Output Frequency | 4 GHz@10 GSa/s，5 GHz@12 GSa/s |
| Sampling Rate | 10 GSa/s (interpolation), optional 12 GSa/s (interpolation) |
| Vertical Resolution | 16-bit |
| Waveform Length | 2 Gpts, optional 4 Gpts |
| Channels | 2; 4 |
