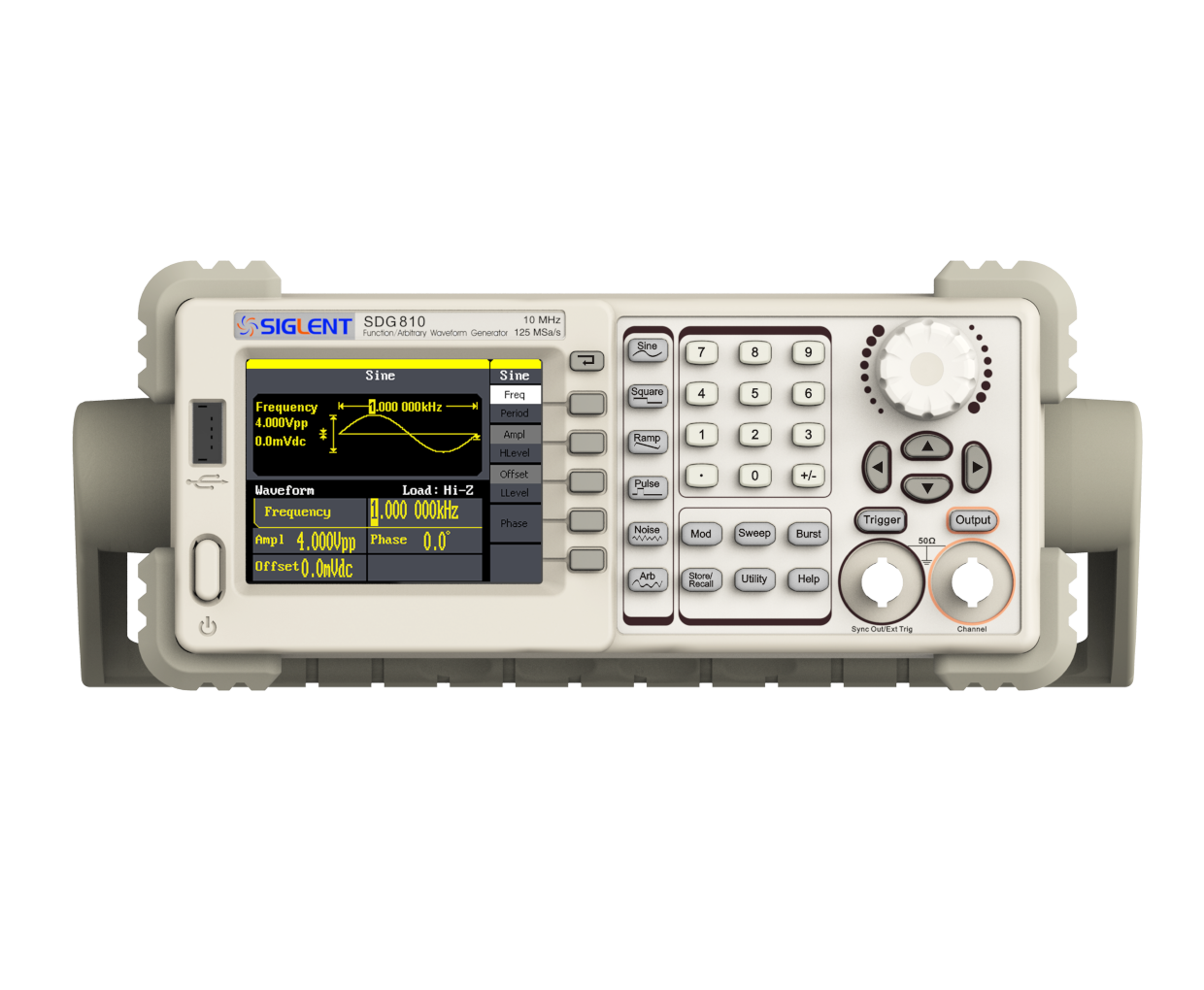

Siglent SDG800 Waveform and Function Generator 10/30 MHz 1 Channel | Generator Fungsi/Bentuk Gelombang
Specially designed for basic laboratories, the SDG800 supports standard waveforms and simple arbitrary waveform generation up to 30 MHz for teaching and basic scientific research.
Available models include SDG830, SDG810.
Specially designed for basic laboratories, SDG800 series is favored for its economical price and practical functions. It supports a variety of standard waveforms and simple arbitrary waveform generation, and the frequency is as high as 30 MHz, which can meet the needs of daily teaching and basic scientific research.
Key Features
- Single channel. Maximum output 30 MHz continuous signal.
- 125 MSa/s sampling rate, 14-bit vertical resolution.
- 16 kpts Arbitrary Waveform Length
- Abundant Modulation types: AM\DSB-AM\FM\PM\FSK\ASK\PWM\SWEEP\BURST
- Standard arbitrary waveform editing software.
- 3.5 inch display
Model & Varian
| Model | Max Output Frequency | Sampling Rate | Vertical Resolution | Waveform Length | Channels |
|---|---|---|---|---|---|
| SDG830 | 30 MHz | 125 MSa/s | 14 bit | 16 kpts | 1 |
| SDG810 | 10 MHz | 125 MSa/s | 14 bit | 16 kpts | 1 |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Model Variants | SDG830, SDG810 |
|---|---|
| Max Output Frequency | 30 MHz; 10 MHz |
| Sampling Rate | 125 MSa/s |
| Vertical Resolution | 14 bit |
| Waveform Length | 16 kpts |
| Channels | 1 |
