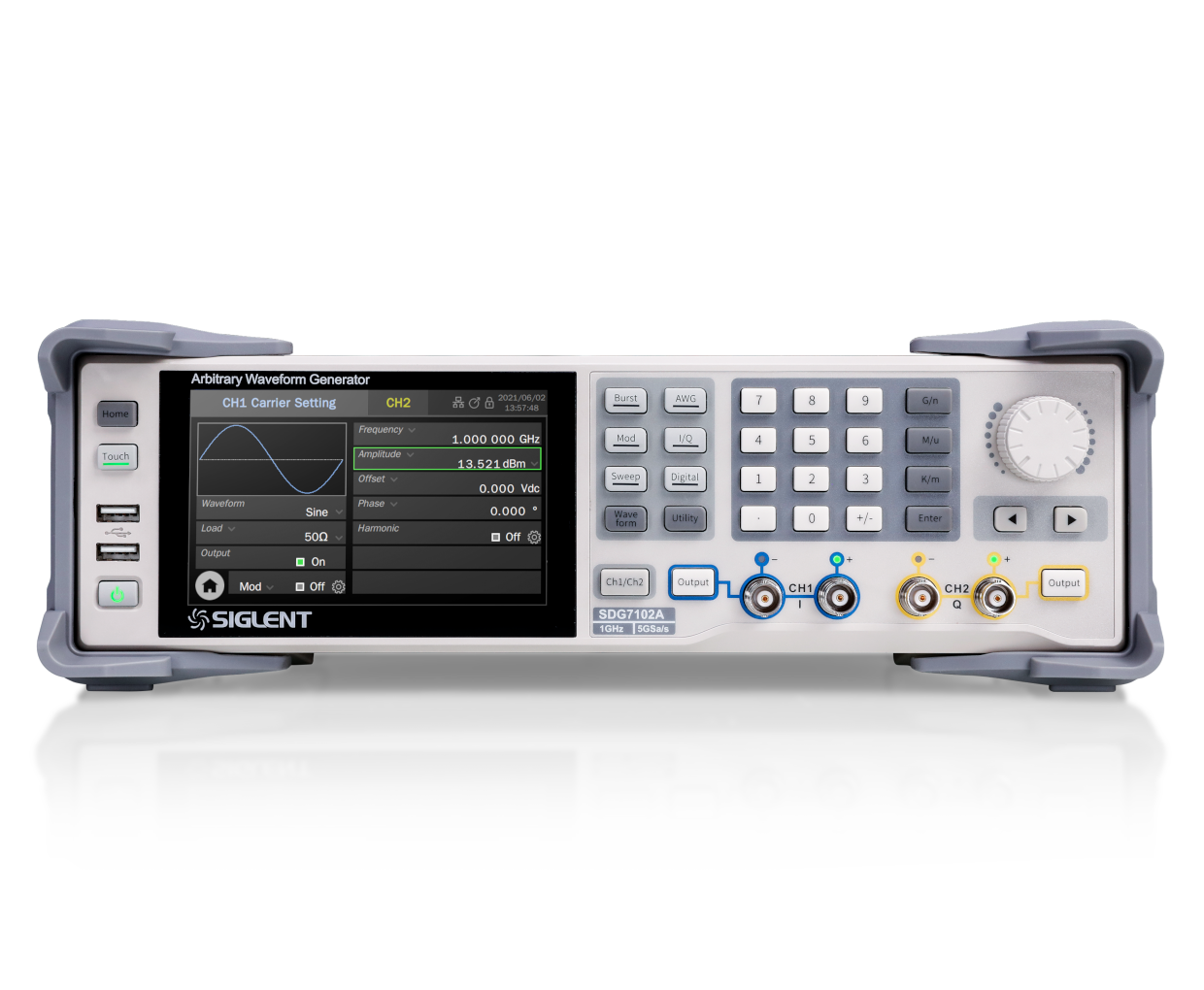

Siglent SDG7000A Waveform and Function Generator 350 MHz to 1 GHz | Generator Fungsi/Bentuk Gelombang
As a high-performance signal source, SDG7000A series not only inherits all the advantages of SDG6000X series, but also optimizes the user interface and expansibility.
Available models include SDG7032A, SDG7052A, SDG7102A.
As a high-performance signal source, SDG7000A series not only inherits all the advantages of SDG6000X series, but also optimizes the user interface and expansibility. Multi-channel synchronous output is supported to meet the synchronous test requirements in different scenarios. Its excellent performance and flexible configuration make it the first choice tool in scientific research and production.
Key Features
- Max Output Frequency 1 GHz
- High-performance sampling system with 5 GSa/s sample rate and 14 -bit vertical resolution
- Dual-channel differential/single-ended output, 16-bit LVDS/LVTTL digital bus outputs (optional)
- Generates vector signals with up to 500 MS/s symbol rate
- The 24 Vpp analog output is superimposed with ± 12 Vdc offset to provide a maximum output range of ± 24 V (48 V)
Model & Varian
| Model | Max Output Frequency | Sampling Rate | Vertical Resolution | Waveform Length |
|---|---|---|---|---|
| SDG7032A | 350 MHz | 5 GSa/s | 14-bit | 512 Mpts |
| SDG7052A | 500 MHz | 5 GSa/s | 14-bit | 512 Mpts |
| SDG7102A | 1 GHz | 5 GSa/s | 14-bit | 512 Mpts |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Model Variants | SDG7032A, SDG7052A, SDG7102A |
|---|---|
| Max Output Frequency | 350 MHz; 500 MHz; 1 GHz |
| Sampling Rate | 5 GSa/s |
| Vertical Resolution | 14-bit |
| Waveform Length | 512 Mpts |
