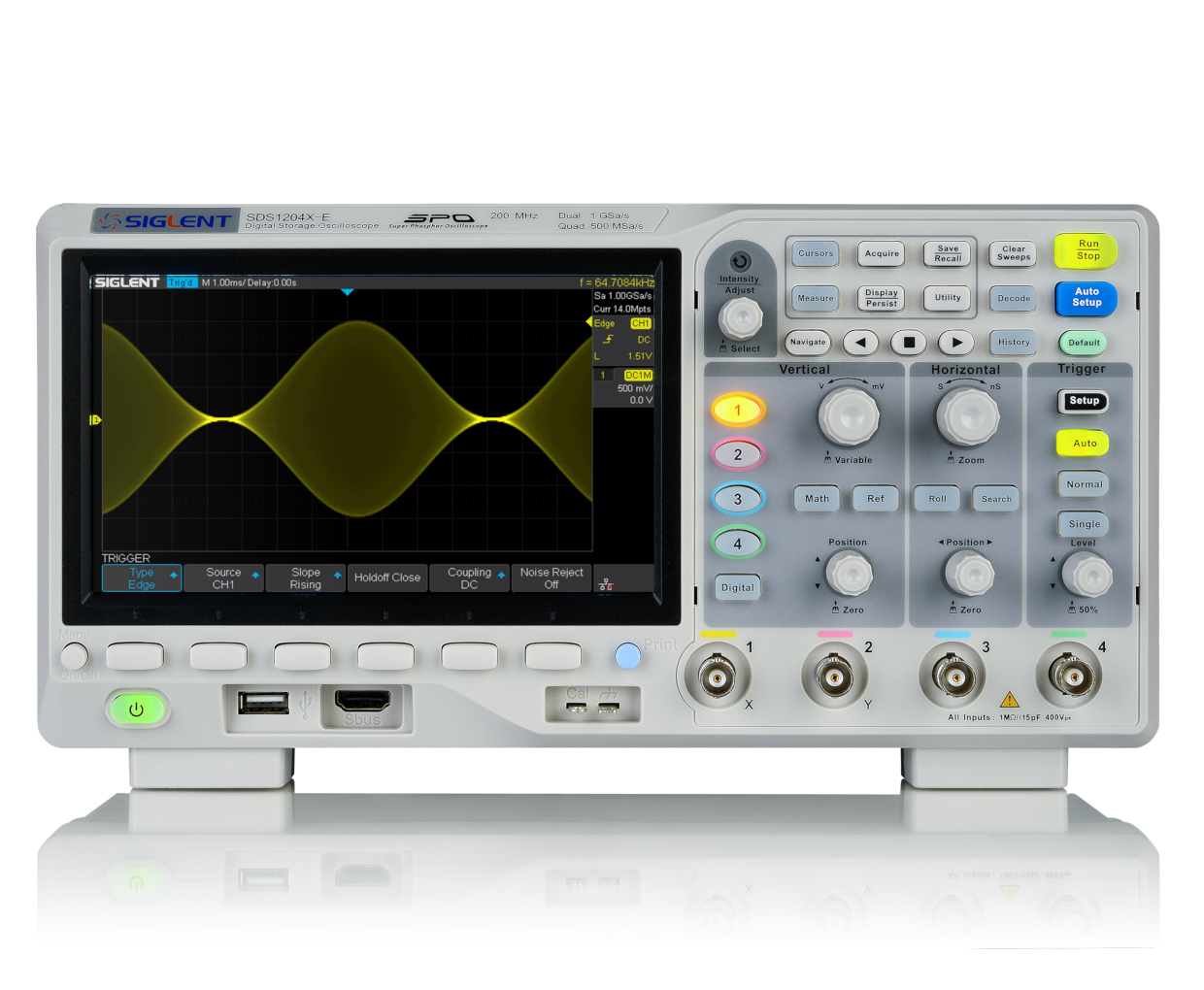

Siglent SDS1000X-E Digital Storage Oscilloscope 100/200 MHz 2/4 Channels | Osiloskop Digital
SDS1000X-E series is a high-quality product launched by SIGLENT for economical market.
Available models include SDS1204X-E, SDS1202X-E, SDS1104X-E.
SDS1000X-E series is a high-quality product launched by SIGLENT for economical market. It provides 70 MHz to 200 MHz bandwidth, 1 GSa/s sampling rate and rich trigger options to ensure the accuracy and reliability of test results. It is an ideal choice for beginners and users with limited budget.
Key Features
- 2 + EXT/4 channels，1 GSa/s Real time sampling rate
- Bandwidth:100 MHz、200 MHz
- 1 Mpts FFT
- True measurement and math can use all 14 Mpts of memory
- Free Serial bus triggering and decoding:IIC, SPI, UART, RS232, CAN, and LIN
Model & Varian
| Model | Bandwidth | Channels | Vertical Resolution | Sampling Rate | Memory Depth | Capture Rate |
|---|---|---|---|---|---|---|
| SDS1204X-E | 200 MHz | 4 | 8-bit | 1 GSa/s | 14 Mpts | 400,000 wfm/s |
| SDS1202X-E | 200 MHz | 2+EXT | 8-bit | 1 GSa/s | 14 Mpts | 400,000 wfm/s |
| SDS1104X-E | 100 MHz | 4 | 8-bit | 1 GSa/s | 14 Mpts | 400,000 wfm/s |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Model Variants | SDS1204X-E, SDS1202X-E, SDS1104X-E |
|---|---|
| Bandwidth | 200 MHz; 100 MHz |
| Channels | 4; 2+EXT |
| Vertical Resolution | 8-bit |
| Sampling Rate | 1 GSa/s |
| Memory Depth | 14 Mpts |
| Capture Rate | 400,000 wfm/s |
