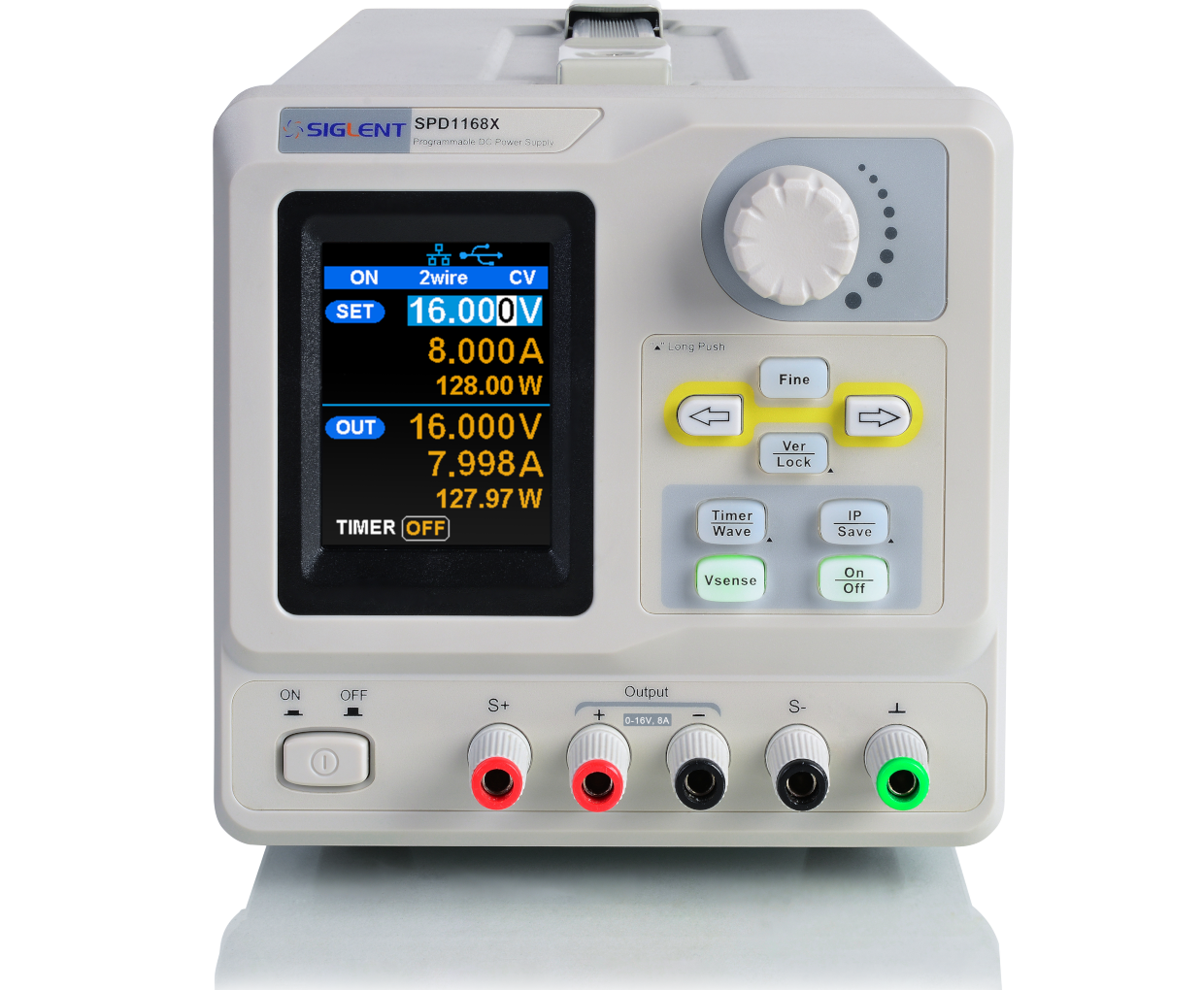

Siglent SPD1000X Programmable DC Power Supply 128/150 W 1 Channel | Catu Daya DC Programmable
The Siglent SPD1000X Programmable Linear DC Power Supply has a 2.8 inch TFT-LCD display, features remote computer control capability, and real-time wave display.
Available models include SPD1305X, SPD1168X.
The Siglent SPD1000X Programmable Linear DC Power Supply has a 2.8 inch TFT-LCD display, features remote computer control capability, and real-time wave display. This single output design is focused on delivering high performance and ease-of-use in a small package. The SPD1168 power supply features a high-precision programmable output capable of delivering up to 16 V/8 A. <
Key Features
- Single channel high-precision programmable voltage output:SPD1168X:16 V / 8 A / 128 W；
- Stable, reliable, Low ripple and noise:≤ 350 uVrms/3 mVpp; < 2 mArms
- 5 digit Voltage, 4 digit Current Display, Minimum Resolution: 1 mV/1 mA
- 2 types of output modes:Two-wire output mode, 4-wire compensation output mode，Max. compensation 1 V
- 100/120/220/230 V compatible design
- Clear graphical interface, with waveform display function
Model & Varian
| Model | Max single output current | Max single output voltage | Max output power | Channels | Resolution |
|---|---|---|---|---|---|
| SPD1305X | 5 A | 30 V | 150 W | 1 | 1 mV/1 mA |
| SPD1168X | 8 A | 16 V | 128 W | 1 | 1 mV/1 mA |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Model Variants | SPD1305X, SPD1168X |
|---|---|
| Max single output current | 5 A; 8 A |
| Max single output voltage | 30 V; 16 V |
| Max output power | 150 W; 128 W |
| Channels | 1 |
| Resolution | 1 mV/1 mA |
