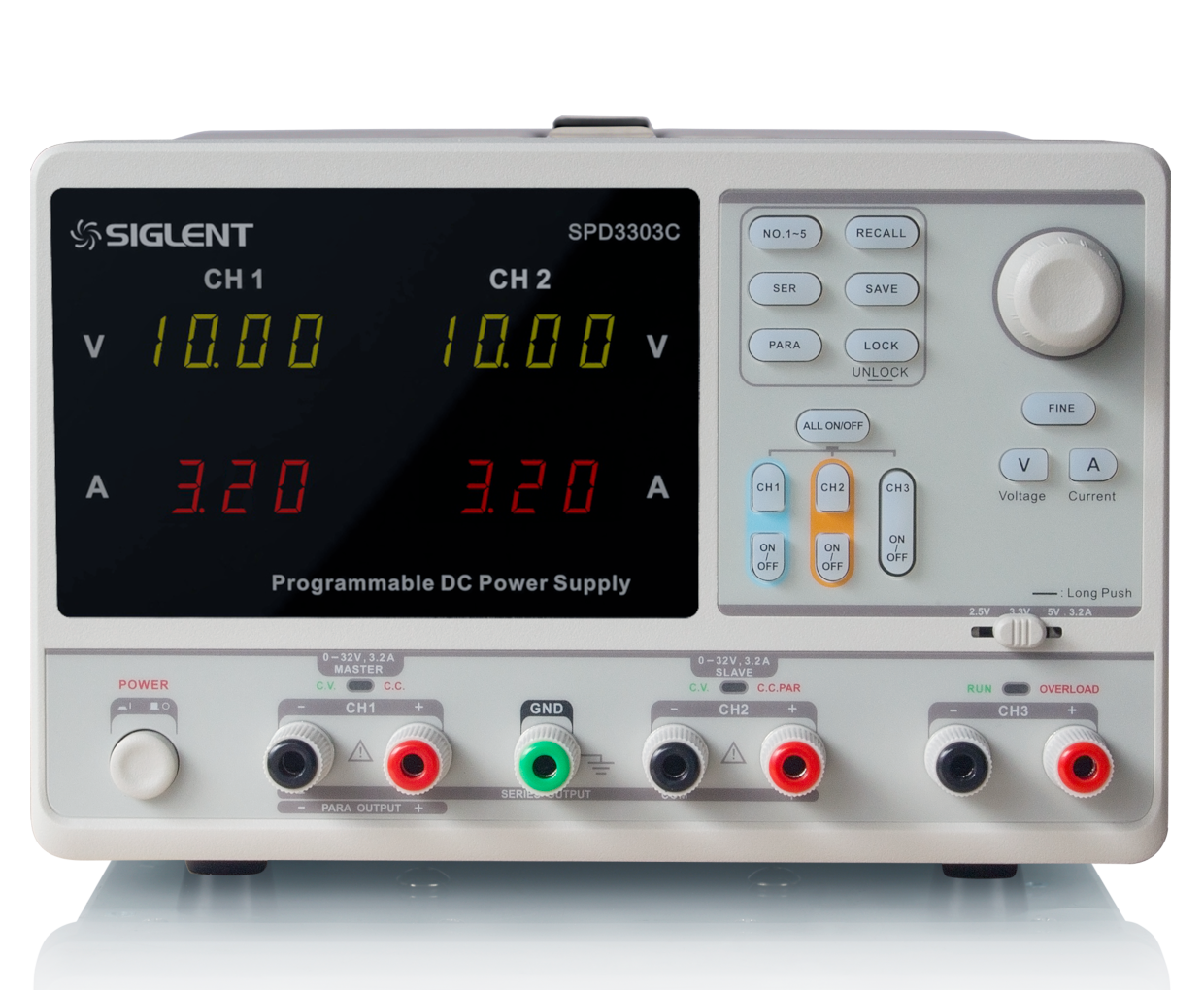

Siglent SPD3303C Programmable DC Power Supply 32 V 3.2 A 220 W 3 Channels | Catu Daya DC Programmable
The SIGLENT SPD3303C Programmable DC Power Supply is a LED display screen and programmable linear DC power supply that is both lightweight and feature-packed.
The SIGLENT SPD3303C Programmable DC Power Supply is a LED display screen and programmable linear DC power supply that is both lightweight and feature-packed. It has three independent outputs: two sets of adjustable voltage / current and a fixed set of selectable voltages; 2.5, 3.3, and 5 V. In addition, the SPD3303C DC power supply has outputs that are short-circuit and overload protected. Total power is 220 W.
Key Features
- Total 220 W power
- 4 digit voltage and 3 digit current display, min resolution: 10 mV, 10 mA
- 100/120/220/230 V compatible design
- Three output modes: independent, series and parallel
- 3 independent high precision outputs: two 32 V /3.2 A, one 2.5 V / 3.3 V / & 5 V / 3.2 A
Spesifikasi
| C.V Mode Line Regulation | ≤ 0.01%+2 mV |
|---|---|
| C.V Mode Load Regulation | ≤ 0.01%+2 mV |
| C.V Mode Ripple&Noise | 300 μVrms/2 mVpp(5 Hz ～ 1 MHz) |
| C.V Mode Recovery Time | ＜ 50μs（50% load change， minimum load 0.5A） |
| C.C Mode Line Regulation | ≤ 0.01%+250 μA |
| C.C Mode Load Regulation | ≤ 0.01%+250 μA |
| C.C Mode Ripple&Noise | ≤ 2 mArms |
| Parallel Mode Line Regulation | ≤ 0.01%+2 mV |
| Parallel Mode Load Regulation | ≤ 0.01%+2 mV |
| Series Mode Line Regulation | ≤ 0.01%+5 mV |
| Series Mode Load Regulation | ≤ 300 mV |
