Siglent

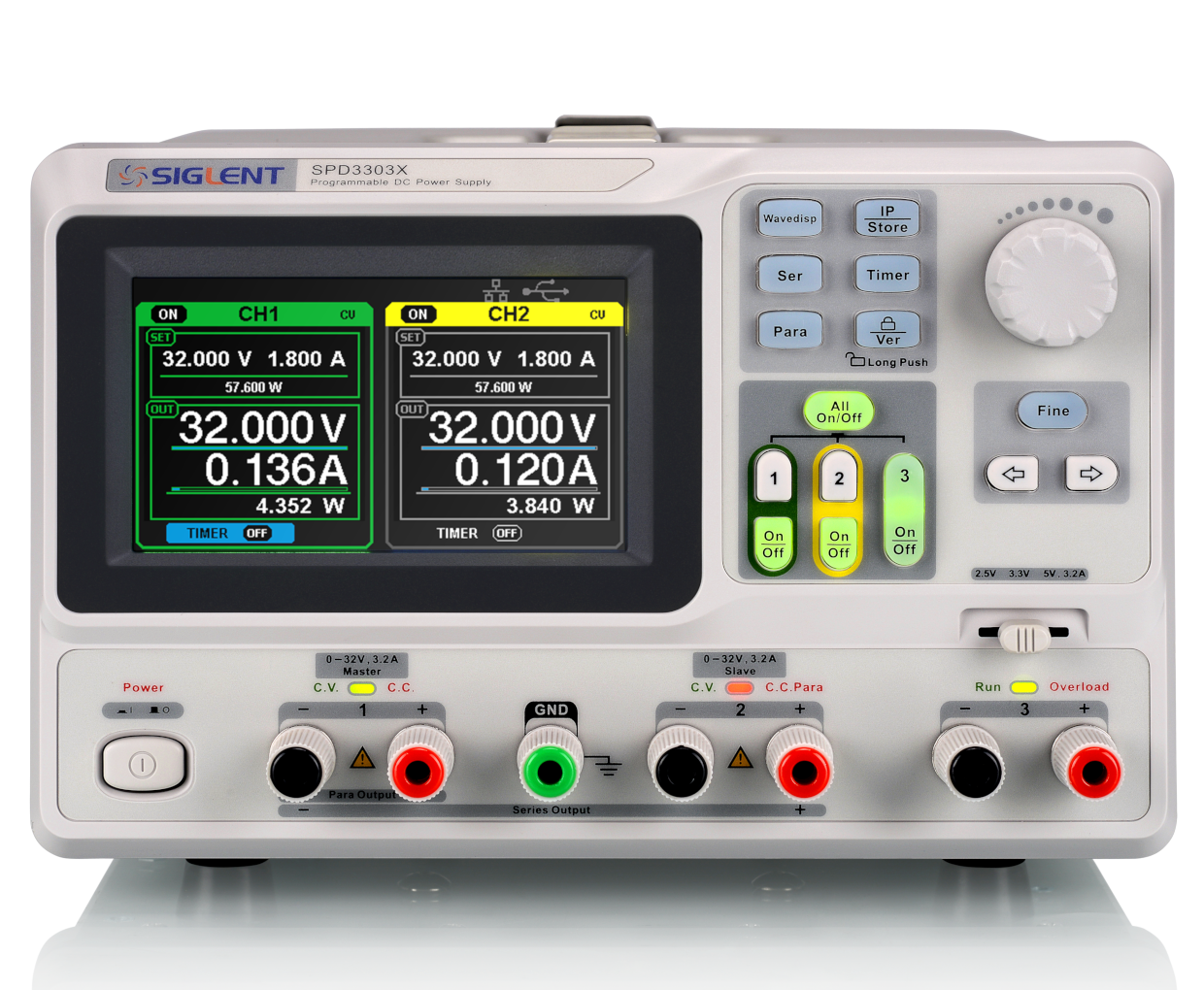

Siglent SPD3303X Programmable DC Power Supply 32 V 3.2 A 220 W 3 Channels | Catu Daya DC Programmable
Siglent’s SPD3303X & SPD3303X-E Series Programmable Linear DC Power Supplies have a 4.3 inch TFT-LCD display, support Remote Programming and have Real Time Wave Displays.
Available models include SPD3303X-E, SPD3303X.
Siglent’s SPD3303X & SPD3303X-E Series Programmable Linear DC Power Supplies have a 4.3 inch TFT-LCD display, support Remote Programming and have Real Time Wave Displays. The SPD3000X Series has three isolated outputs; two adjustable channels and one selectable channel from 2.5 V, 3.3 V, and 5 V. It also has output short and overload protection and can be used in production and development.
Key Features
- Total Power 220 W
- 3 independently controlled and isolated outputs
- 5 digit Voltage/4 digit Current Display, Minimum Resolution: 1 mV/1 mA (SPD3303X)
- 100 V, 120 V, 220 V and 230 V compatible design.
- 4.3 inch true color TFT- LCD 480 x 272 display
Model & Varian
| Model | Max single output current | Max single output voltage | Max output power | Channels | Resolution |
|---|---|---|---|---|---|
| SPD3303X-E | 3.2 A | 32 V | 220 W | 3 | 10 mV/10 mA |
| SPD3303X | 3.2 A | 32 V | 220 W | 3 | 1 mV/1 mA |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Model Variants | SPD3303X-E, SPD3303X |
|---|---|
| Max single output current | 3.2 A |
| Max single output voltage | 32 V |
| Max output power | 220 W |
| Channels | 3 |
| Resolution | 10 mV/10 mA; 1 mV/1 mA |
