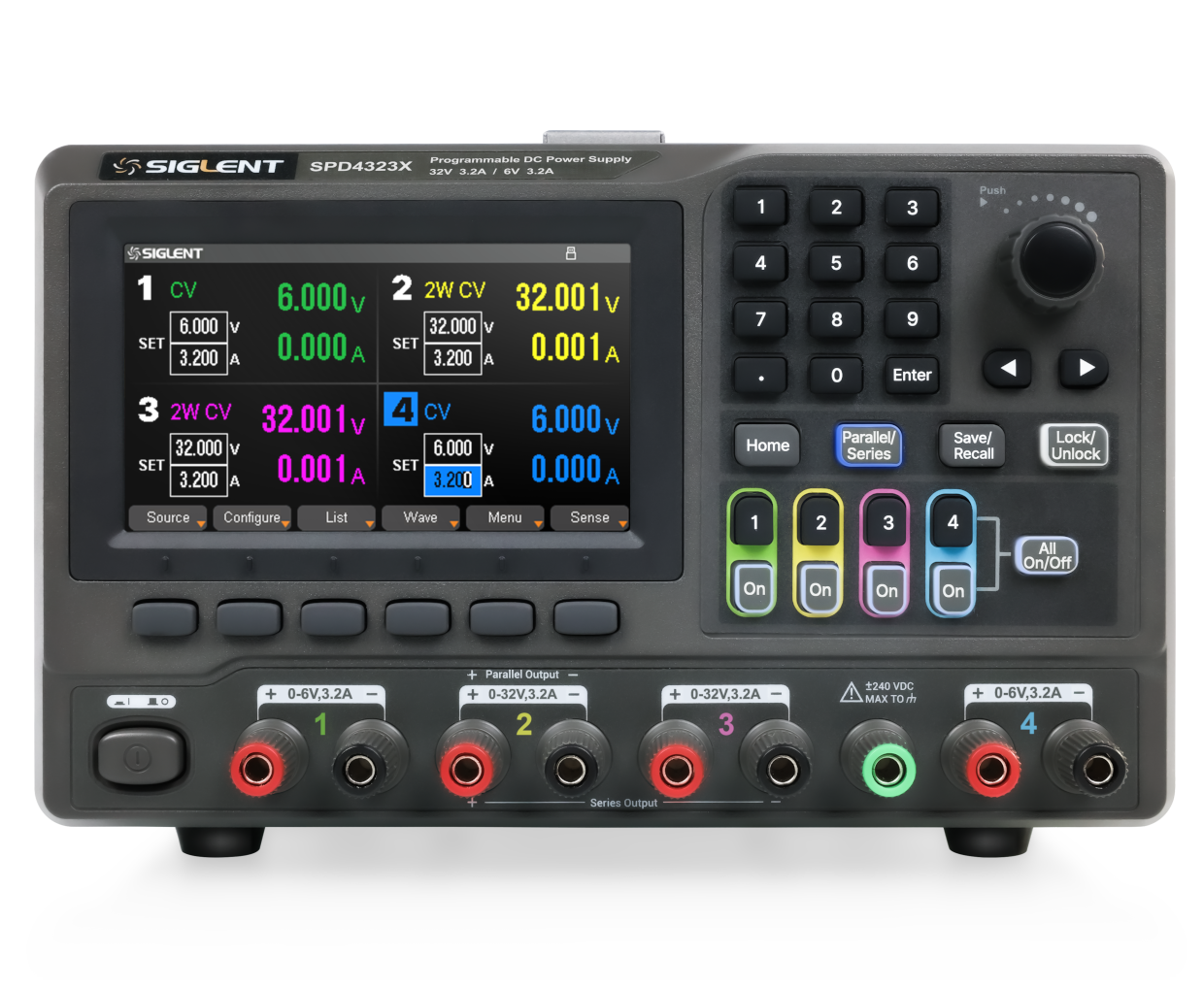

Siglent SPD4000X Programmable DC Power Supply 240/285/400 W 4 Channels | Catu Daya DC Programmable
The SPD4000X series programmable linear DC power supply is equipped with a 4.3-inch TFT-LCD display, friendly human-machine interface, and excellent performance indicators.
Available models include SPD4323X, SPD4121X, SPD4306X.
The SPD4000X series programmable linear DC power supply is equipped with a 4.3-inch TFT-LCD display, friendly human-machine interface, and excellent performance indicators. Real-time waveform display provides engineers with an informative user interface.
Key Features
- Rated output power:240 W、285W、400W
- Four independent outputs
- 5-digit voltage and current display with minimum resolution of 1mV, 1mA
- List time accuracy
- Support remote voltage compensation sense function
- 4.3″ TFT-LCD
Model & Varian
| Model | Max single output current | Max single output voltage | Max output power | Channels | Resolution |
|---|---|---|---|---|---|
| SPD4323X | 3.2 A | 32 V | 240 W | 4 | 1 mV/1 mA |
| SPD4121X | 10 A | 15 V | 285 W | 4 | 1 mV/1 mA |
| SPD4306X | 6 A | 30 V | 400 W | 4 | 1 mV/1 mA |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Model Variants | SPD4323X, SPD4121X, SPD4306X |
|---|---|
| Max single output current | 3.2 A; 10 A; 6 A |
| Max single output voltage | 32 V; 15 V; 30 V |
| Max output power | 240 W; 285 W; 400 W |
| Channels | 4 |
| Resolution | 1 mV/1 mA |
