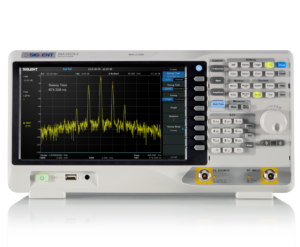

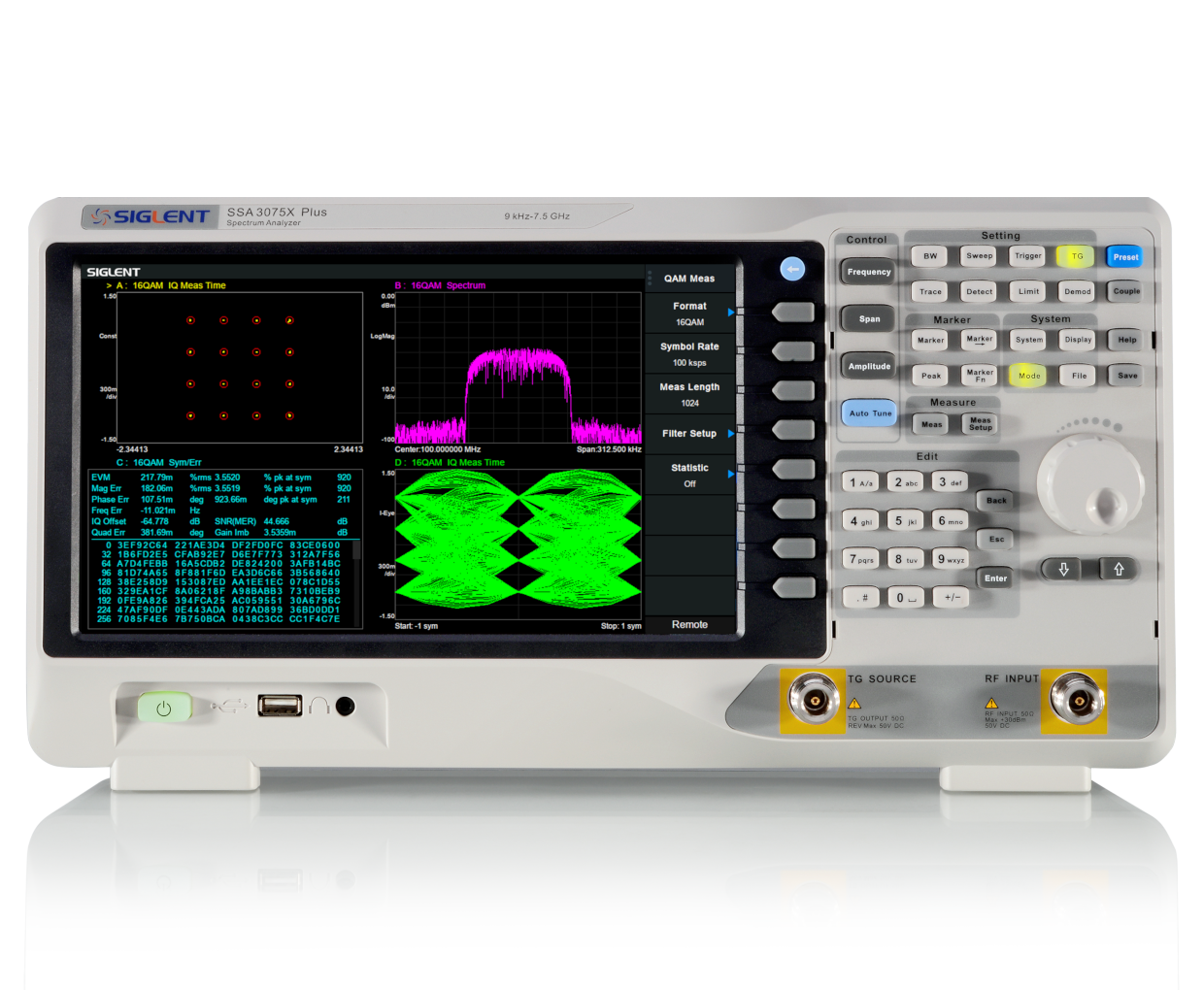

Siglent SSA3000X Plus Spectrum Analyzer 9 kHz to 7.5 GHz | Analyzer Sinyal RF
SIGLENT SSA3000X Plus Spectrum Analyzers are powerful and flexible tools for RF signals and network analysis.
Available models include SSA3015X Plus, SSA3021X Plus, SSA3032X Plus, SSA3075X Plus.
SIGLENT SSA3000X Plus Spectrum Analyzers are powerful and flexible tools for RF signals and network analysis. With a frequency range up to 7.5 GHz, the SSA3000X analyzers deliver reliable automatic measurements and multiple modes of operation: spectrum analyzer the base, optional functions include RF power measurement, vector signal modulation analysis, reflection measurement, and EMI test.
Key Features
- Frequency Range:9 kHz ~ 7.5 GHz
- -165 dBm/Hz Displayed average noise level (typical)
- 1 Hz Minimum Resolution Bandwidth (RBW)
- 10.1 inch Touch Screen
Model & Varian
| Model | Frequency Range | Phase Noise（typ.） | Display Average Noise Level (DANL) | Resolution Bandwidth (RBW) | Tracking Generator |
|---|---|---|---|---|---|
| SSA3015X Plus | 9 kHz ~ 1.5 GHz | < -99 dBc/Hz | -156 dBm/Hz | 1 Hz ~ 1 MHz | Standard |
| SSA3021X Plus | 9 kHz ~ 2.1 GHz | < -98 dBc/Hz | -161 dBm/Hz | 1 Hz ~ 1 MHz | Standard |
| SSA3032X Plus | 9 kHz ~ 3.2 GHz | < -98 dBc/Hz | -161 dBm/Hz | 1 Hz ~ 1 MHz | Standard |
| SSA3075X Plus | 9 kHz ~ 7.5 GHz | < -98 dBc/Hz | -165 dBm/Hz | 1 Hz ~ 3 MHz | Standard |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Model Variants | SSA3015X Plus, SSA3021X Plus, SSA3032X Plus, SSA3075X Plus |
|---|---|
| Frequency Range | 9 kHz ~ 1.5 GHz; 9 kHz ~ 2.1 GHz; 9 kHz ~ 3.2 GHz; 9 kHz ~ 7.5 GHz |
| Max Analysis Bandwidth | - |
| Phase Noise（typ.） | < -99 dBc/Hz; < -98 dBc/Hz |
| Display Average Noise Level (DANL) | -156 dBm/Hz; -161 dBm/Hz; -165 dBm/Hz |
| Vector Network Analysis Range | - |
| Resolution Bandwidth (RBW) | 1 Hz ~ 1 MHz; 1 Hz ~ 3 MHz |
| Tracking Generator | Standard |
