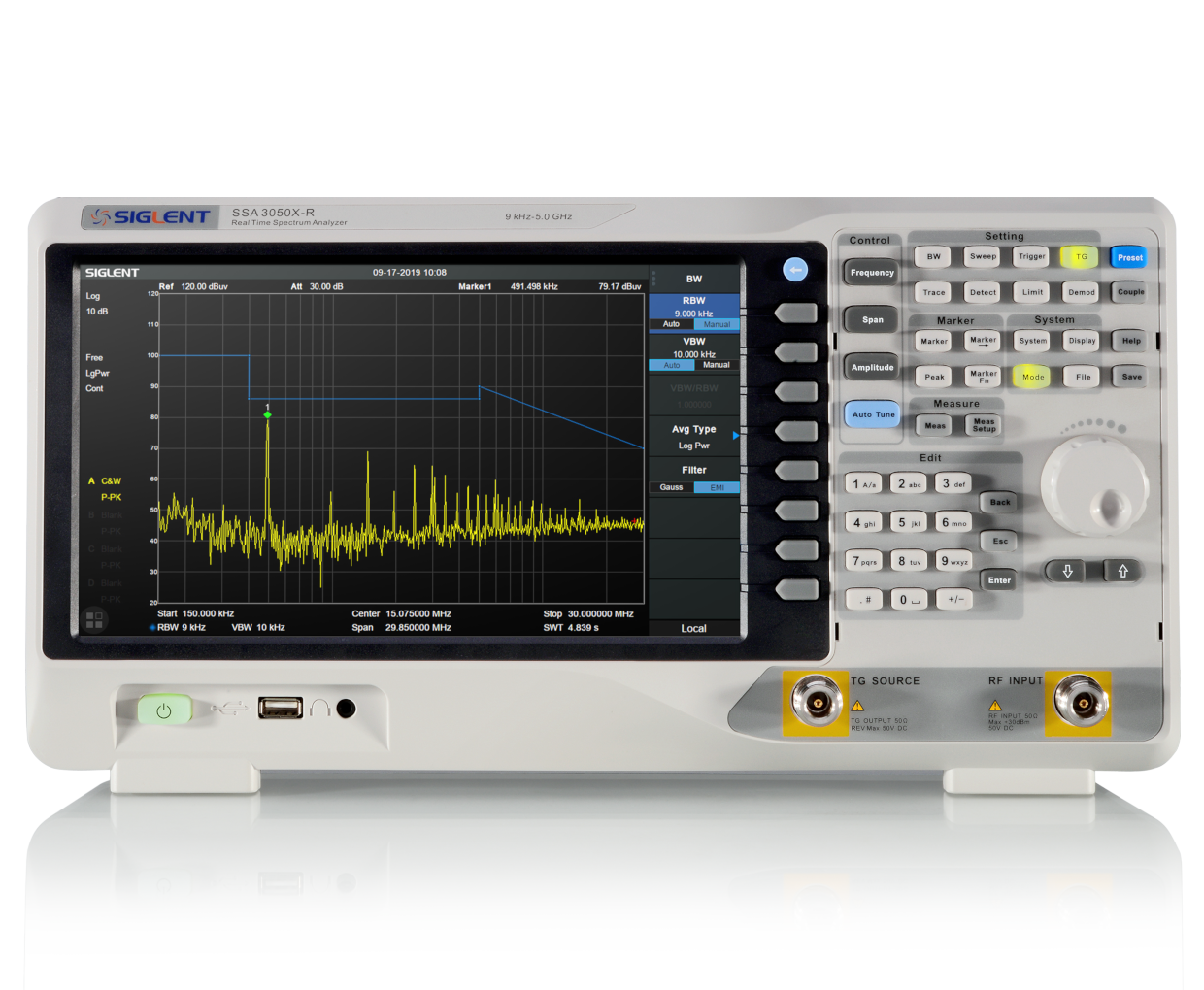

Siglent SSA3000X-R Spectrum Analyzer 9 kHz to 7.5 GHz | Analyzer Sinyal RF
SIGLENT SSA3000X-R real-time spectrum analyzers are powerful and flexible tools for complex RF signal monitoring and analysis.
Available models include SSA3032X-R, SSA3050X-R, SSA3075X-R.
SIGLENT SSA3000X-R real-time spectrum analyzers are powerful and flexible tools for complex RF signal monitoring and analysis. With a capability of 40 MHz analysis bandwidth and 7.2 µs 100% POI, the SSA3000X-R spectrum analyzers can provide multi-dimensions data displays, advanced triggering, and RF data capturing, to solve modern RF spectrum challenges, like hopping frequency, conflict channel, spectrum interference, etc. They also provide a standard tracking generator for network analysis, optional wideband digital modulation analysis, and EMI pre-compliance test.
Key Features
- Spectrum Analyzer Frequency Range from 9 kHz up to 3.2 GHz / 5.0 GHz / 7.5 GHz
- Maximum Real Time bandwidth 40 MHz
- Minimum Signal Duration with 100% POI, 7.2 us
- Spectrum acquisition is 50,000 frames.
- -165 dBm/Hz Displayed Average Noise Level (Typ.)
- -98 dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typ.)
- Now with VNA and DTF functions, free!
Model & Varian
| Model | Frequency Range | Max Analysis Bandwidth | Phase Noise（typ.） | Display Average Noise Level (DANL) | Vector Network Analysis Range | Resolution Bandwidth (RBW) | Tracking Generator |
|---|---|---|---|---|---|---|---|
| SSA3032X-R | 9 kHz ~ 3.2 GHz | 40 MHz | <-98 dBc/Hz | -165 dBm/Hz | 100 kHz ~ 3.2 GHz | 1 Hz ~ 3 MHz | 100 kHz~ 3.2 GHz |
| SSA3050X-R | 9 kHz ~ 5.0 GHz | 40 MHz | <-98 dBc/Hz | -165 dBm/Hz | 100 kHz~ 5.0 GHz | 1 Hz ~ 3 MHz | 100 kHz~ 5.0 GHz |
| SSA3075X-R | 9 kHz ~ 7.5 GHz | 40 MHz | <-98 dBc/Hz | -165 dBm/Hz | 100 kHz - 7.5 GHz | 1 Hz ~ 3 MHz | 100 kHz~ 7.5 GHz |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Model Variants | SSA3032X-R, SSA3050X-R, SSA3075X-R |
|---|---|
| Frequency Range | 9 kHz ~ 3.2 GHz; 9 kHz ~ 5.0 GHz; 9 kHz ~ 7.5 GHz |
| Max Analysis Bandwidth | 40 MHz |
| Display Average Noise Level (DANL) | -165 dBm/Hz |
| Vector Network Analysis Range | 100 kHz ~ 3.2 GHz; 100 kHz~ 5.0 GHz; 100 kHz - 7.5 GHz |
| Resolution Bandwidth (RBW) | 1 Hz ~ 3 MHz |
| Tracking Generator | 100 kHz~ 3.2 GHz; 100 kHz~ 5.0 GHz; 100 kHz~ 7.5 GHz |
