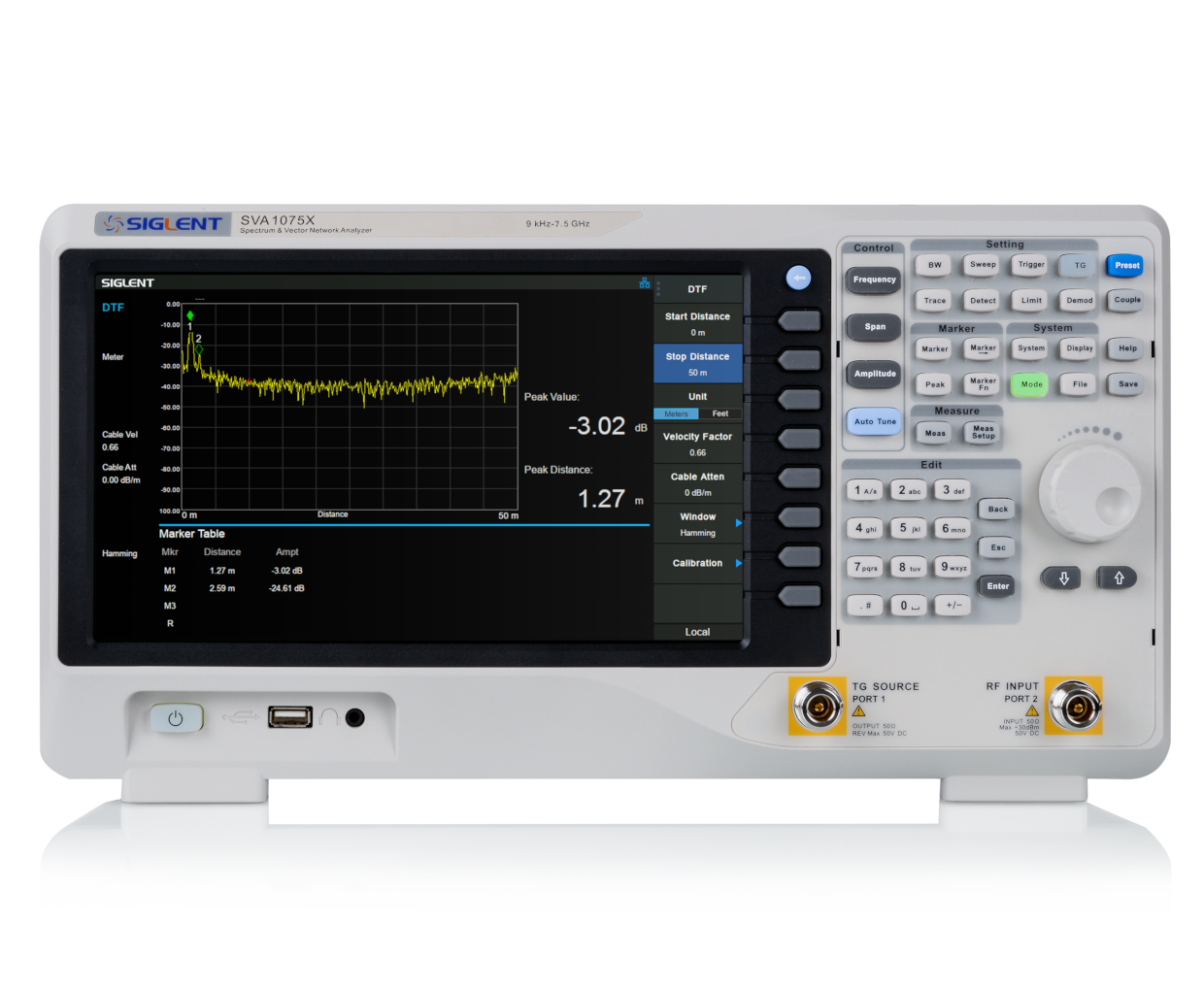

Siglent SVA1000X Spectrum & Vector Analyzer 9 kHz to 7.5 GHz | Analyzer Sinyal RF
SIGLENT SVA1000X Spectrum and Vector Network Analyzers are powerful and flexible tools for RF signal and network analysis.
Available models include SVA1015X, SVA1032X, SVA1075X.
SIGLENT SVA1000X Spectrum and Vector Network Analyzers are powerful and flexible tools for RF signal and network analysis. With a frequency range to 7.5 GHz, the SVA1000X analyzer delivers reliable automatic measurements and multiple modes of operation: the base model is a spectrum analyzer and a vector network analyzer, and optional functions include a distance-to-fault locator, and a vector signal modulation analyzer.
Key Features
- Spectrum Analyzer Frequency Range from 9 kHz up to 7.5 GHz
- Vector Network Analyzer Frequency Range from 100 kHz up to 7.5 GHz
- Displayed Average Noise Level (Typ.):< -165 dBm/Hz
- -99 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
- Tracking Generator Standard
Model & Varian
| Model | Frequency Range | Phase Noise（typ.） | Display Average Noise Level (DANL) | Vector Network Analysis Range | Resolution Bandwidth (RBW) | Tracking Generator |
|---|---|---|---|---|---|---|
| SVA1015X | 9 kHz ~ 1.5 GHz | <-99 dBc/Hz | -156 dBm/Hz | 100 kHz ~ 1.5 GHz | 1 Hz to 1 MHz, in 1-3-10 step | Standard |
| SVA1032X | 9 kHz~3.2 GHz | <-98 dBc/Hz | -161 dBm/Hz | 100 kHz ~ 3.2 GHz | 1 Hz to 1 MHz, in 1-3-10 step | Standard |
| SVA1075X | 9 kHz - 7.5 GHz | <-98 dBc/Hz | -165 dBm/Hz | 100 kHz ~ 7.5 GHz | 1 Hz to 3 MHz, in 1-3-10 step | Standard |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Model Variants | SVA1015X, SVA1032X, SVA1075X |
|---|---|
| Frequency Range | 9 kHz ~ 1.5 GHz; 9 kHz~3.2 GHz; 9 kHz - 7.5 GHz |
| Display Average Noise Level (DANL) | -156 dBm/Hz; -161 dBm/Hz; -165 dBm/Hz |
| Vector Network Analysis Range | 100 kHz ~ 1.5 GHz; 100 kHz ~ 3.2 GHz; 100 kHz ~ 7.5 GHz |
| Resolution Bandwidth (RBW) | 1 Hz to 1 MHz, in 1-3-10 step; 1 Hz to 3 MHz, in 1-3-10 step |
| Tracking Generator | Standard |
