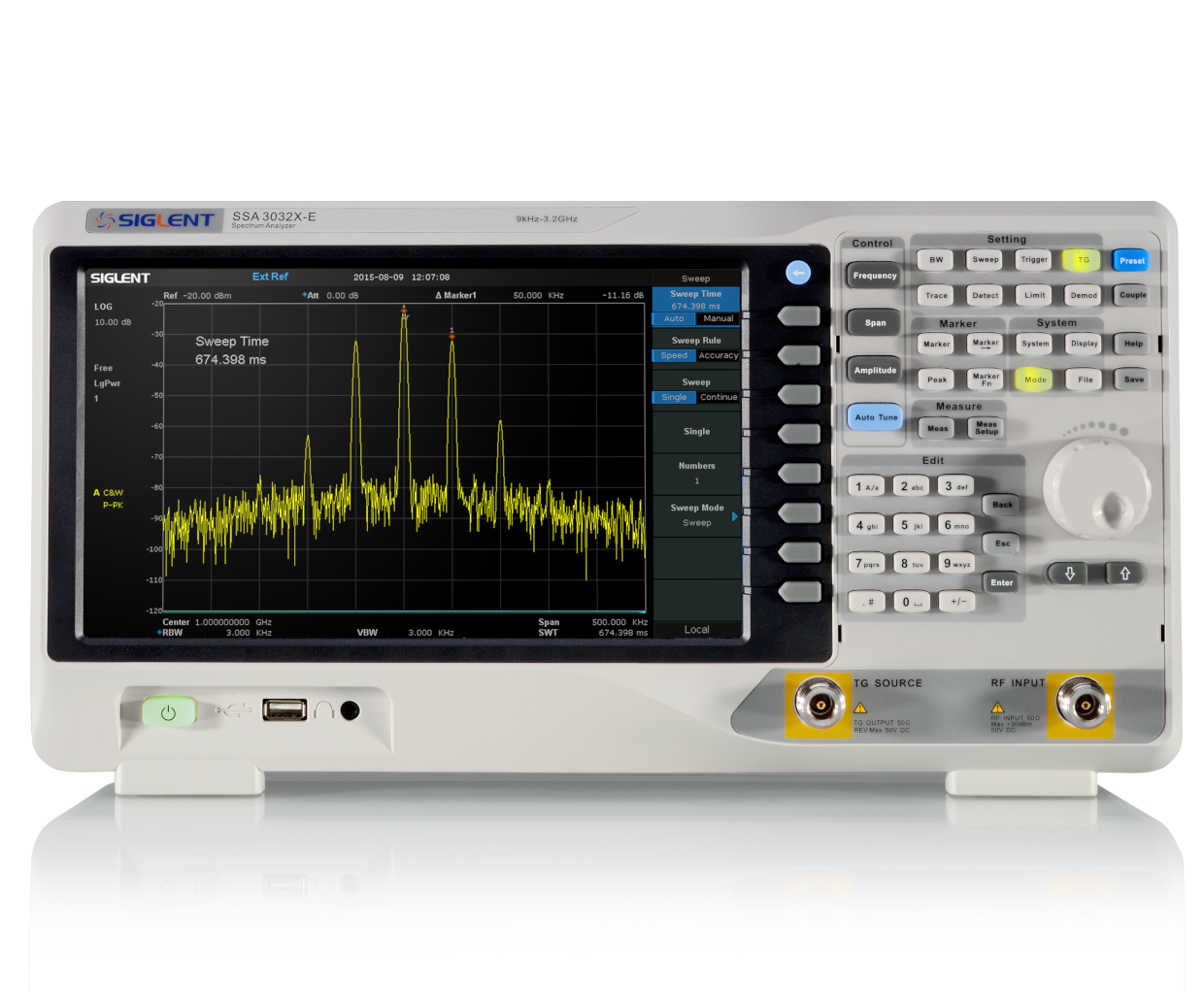

Siglent SSA3000X/X-E Spectrum Analyzer 9 kHz to 3.2 GHz | Analyzer Sinyal RF
Siglent · Signal Analyzer & Spectrum Analyzer
Available models include SSA3021X (Discontinued), SSA3032X（Discontinued）.
SSA3000X series covers the frequency range from 9 kHz to 3.2 GHz, which is suitable for spectrum analysis from basic to mid-range.
Key Features
- Frequency Range from 9 kHz to 2.1/3.2 GHz
- -161 dBm/Hz Displayed Average Noise Level (Typ.)
- -98 dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typ.)
- Amplitude Accuracy
- 1 Hz Minimum Resolution Bandwidth (RBW)
Model & Varian
| Model | Frequency Range | Phase Noise（typ.） | Display Average Noise Level (DANL) | Resolution Bandwidth (RBW) | Tracking Generator |
|---|---|---|---|---|---|
| SSA3021X (Discontinued) | 9 kHz ~ 2.1 GHz | < -98 dBc/Hz@ 1 GHz, 10 kHz offset | -161 dBm/Hz | 1 Hz~1 MHz，1-3-10 step | Standard |
| SSA3032X（Discontinued） | 9 kHz ~ 3.2 GHz | < -98 dBc/Hz@ 1 GHz, 10 kHz offset | -161 dBm/Hz | 1 Hz~1 MHz，1-3-10 step | Standard |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Model Variants | SSA3021X (Discontinued), SSA3032X（Discontinued） |
|---|---|
| Frequency Range | 9 kHz ~ 2.1 GHz; 9 kHz ~ 3.2 GHz |
| Phase Noise（typ.） | < -98 dBc/Hz@ 1 GHz, 10 kHz offset |
| Display Average Noise Level (DANL) | -161 dBm/Hz |
| Resolution Bandwidth (RBW) | 1 Hz~1 MHz，1-3-10 step |
| Tracking Generator | Standard |
