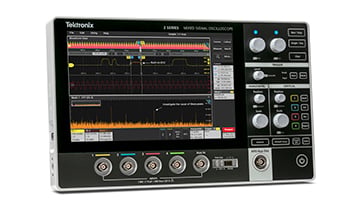

Tektronix 2 Series MSO Portable Touchscreen Oscilloscope 2/4 Channels | Osiloskop Portabel
Discover the Tektronix 2 Series MSO portable oscilloscope (or handheld oscilloscope), built for compact, powerful testing in the field.
Available models include MSO22, MSO24, MSO22-EDU, MSO24-EDU.
Discover the Tektronix 2 Series MSO portable oscilloscope (or handheld oscilloscope), built for compact, powerful testing in the field.
Portable handheld oscilloscope for daily debug and test
Unlock more space on your bench without compromising performance by choosing our most compact and handheld portable oscilloscope.
- At only 1.5 inches thick and less than 4 pounds, the 2 Series MSO feels like a tablet while offering the full-featured functionality of a realtime touchscreen oscilloscope.
- On the benchtop, in the classroom, or to the field, take it wherever your measurement challenges take you.
Simple touchscreen interface and controls
For those seeking the convenience of a portable or handheld oscilloscope, the 2 Series MSO delivers unmatched performance.
- It's small enough to fit into a laptop bag but offers robust specifications, including bandwidths up to 500 MHz and a maximum sample rate of 2.5 GS/s, with options for 2 or 4 analog channels.
- The front and side I/O ports provide easy access and connectivity.
Comprehensive debug with one instrument
Additionally, the optional detachable battery pack offers versatility for bench or field use.
- The 2 Series MSO offers the same award-winning touchscreen user interface and simplified control panel you’ve come to expect on the most advanced Tektronix oscilloscopes.
- With several integrated options, the 2 Series MSO is equipped for all your debugging needs in just one instrument.
Comprehensive Analysis for Fast Insight
A full suite of analysis tools provides immediate access to instrument configuration or waveform management tasks with a single tap.
- Capture data outside the lab, classroom, or any location and collaborate easily with colleagues on the next bench or in the next time-zone.
- Visit dev.tek.com for automation resources like Python packages.

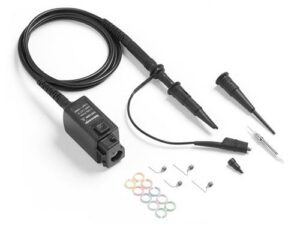

Optional accessories add versatility
Save up to 49%: the 2 Series MSO Education Bundle includes software that adds serial communication analysis, arbitrary function generator, digital pattern generator, and FRA (Bode plot) capabilities, and our 5-Year Total Protection plan.
- With regular firmware releases packed with new features and enhanced performance, your oscilloscope keeps getting better the longer you own it.
- Embedded designs have never been faster, more complex, and connected so their measurement technology must be on the same wavelength.
Analyze, share, collaborate with oscilloscope software
Engineers need tools that can validate, test and design with speed and accuracy.
- Designed with new users and hybrid learning environments in mind, the 2 Series MSO, is the perfect instrument for teaching the next generation of engineers.
- The EDU models are priced exclusively for educational institutions and available with an extended 5-year Total Protection.
2 Series MSO Education Bundle (MSO2x-EDU)
They include serial communication analysis, arbitrary function generator, digital pattern generator, and FRA (Bode plot) capabilities.
- The modern automotive industry moves quickly, and these engineers and technicians need the right oscilloscope at their fingertips to identify issues quickly and easily.
- The 2 Series MSO combines bench-level performance in a portal scope to help unlock new user experiences and make field debug accessible, precise and repeatable.
Model & Varian
| Model | Analog Bandwidth | Analog Channels | Digital Channels | Sample Rate | Record Length |
|---|---|---|---|---|---|
| MSO22 | 70 MHz - 500 MHz | 2 | 16 | Up to 2.5 GS/s | 10 M |
| MSO24 | 70 MHz - 500 MHz | 4 | 16 | Up to 2.5 GS/s | 10 M |
| MSO22-EDU | 70 MHz - 200 MHz | 2 | 16 | Up to 2.5 GS/s | 10 M |
| MSO24-EDU | 70 MHz - 200 MHz | 4 | 16 | Up to 2.5 GS/s | 10 M |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Model & Series | Portable Oscilloscope – 2 Series MSO Mixed Signal |
|---|---|
| Analog Bandwidth | 70 MHz to 500 MHz (model-dependent) |
| Analog Channels | Model-dependent — see Model & Varian |
| Digital Channels | 16 |
| Sample Rate | Up to 2.5 GS/s |
| Record Length | 10 M |
Aplikasi
Embedded Design | Desain Embedded
Unlock more space on your bench without compromising performance by choosing our most compact and handheld portable oscilloscope.
- Unlock more space on your bench without compromising performance by choosing our most compact and handheld portable oscilloscope.
Education | Pendidikan
At only 1.5 inches thick and less than 4 pounds, the 2 Series MSO feels like a tablet while offering the full-featured functionality of a realtime touchscreen oscilloscope.
- At only 1.5 inches thick and less than 4 pounds, the 2 Series MSO feels like a tablet while offering the full-featured functionality of a realtime touchscreen oscilloscope.
Automotive | Otomotif
On the benchtop, in the classroom, or to the field, take it wherever your measurement challenges take you.
- On the benchtop, in the classroom, or to the field, take it wherever your measurement challenges take you.
