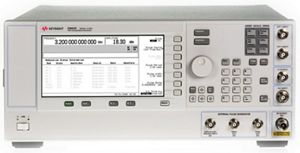

Keysight N5172B EXG X-Series RF Vector Signal Generator | Generator Sinyal RF Vector
EXG X-Series vector signal generator covering 9 kHz to 3 GHz or 6 GHz, with an internal baseband generator for vector modulation.
Available models include N5171B, N5172B.
The N5172B is the vector model of the Keysight EXG X-Series signal generators, covering 9 kHz to 3 GHz or 6 GHz and adding an internal baseband generator.
It shares the frequency coverage and spectral purity of the analog N5171B, with vector modulation added.
Fitur Utama:
- Vector modulation with internal baseband generator
- Frequency options 503 (3 GHz) and 506 (6 GHz)
- Analog modulation also available: AM, FM, PM, pulse
- 5 MHz IQ mode down to 9 kHz
Model & Varian
| Model | Type | Vector modulation |
|---|---|---|
| N5171B | Analog | Not available (analog model) |
| N5172B | Vector | Internal baseband generator |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Frequency resolution | 0.001 Hz |
|---|---|
| Vector modulation | Internal baseband generator |
| Modulation | Analog AM, FM, PM, pulse and pulse train, plus vector |
| Phase offset | Adjustable in nominal 0.1 degree increments |
| Series | Keysight EXG X-Series signal generator |
| Opsi | |
| N5172B-503 | Frequency range, 9 kHz (5 MHz IQ mode) to 3 GHz |
| N5172B-506 | Frequency range, 9 kHz (5 MHz IQ mode) to 6 GHz |
| N5172B-506+FRQ | Frequency range, 9 kHz (5 MHz I/Q mode) to 7.2 GHz |
