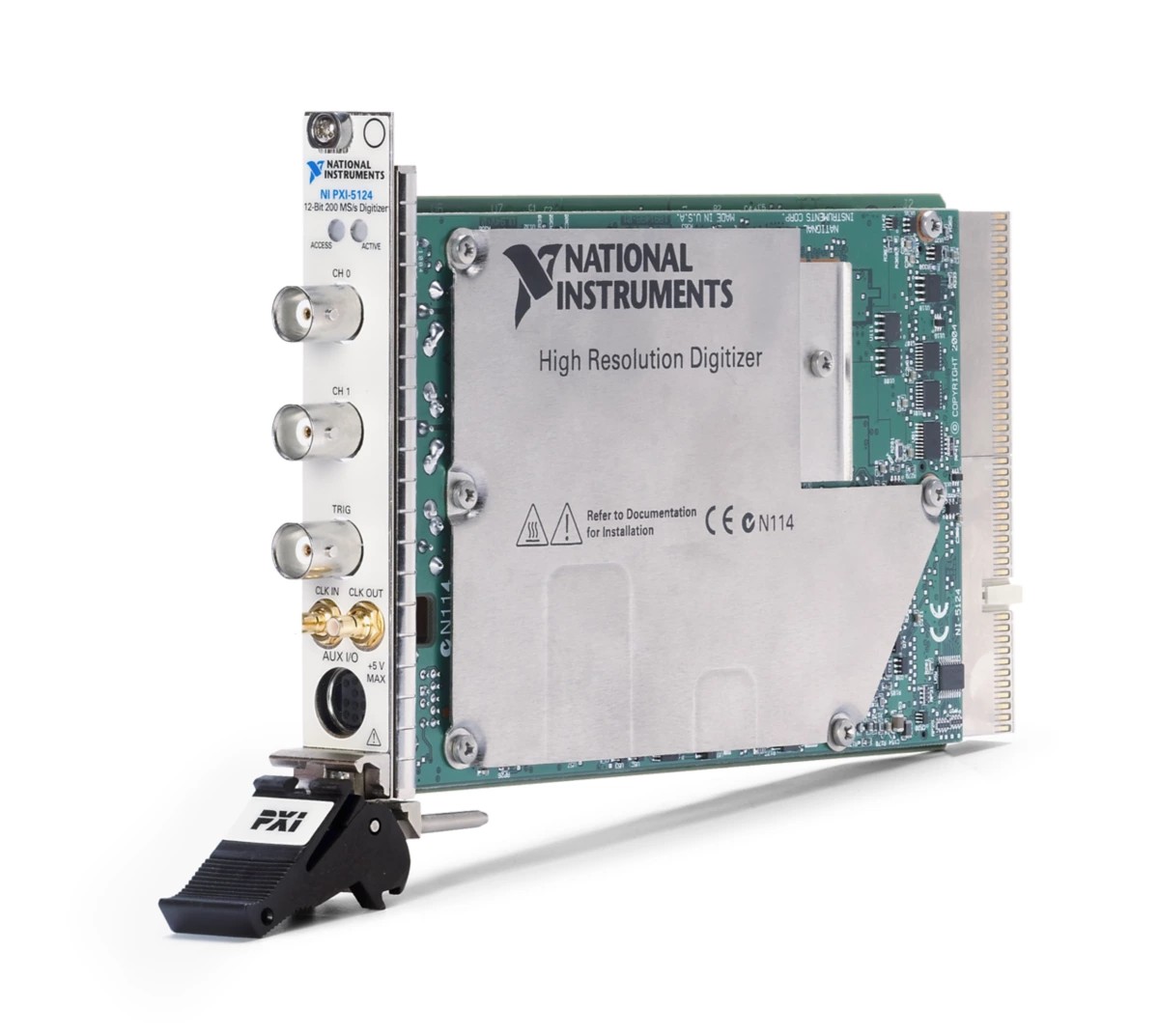

PXI-5124 PXI Oscilloscope, 150 MHz, 12 bits, 200 MS/s, 2 Channels, 8 MB/ch
150 MHz, 200 MS/s, 12-Bit PXI Oscilloscope
The PXI-5124 high-resolution PXI oscilloscope samples up to 200 MS/s with flexible settings for coupling, impedance, voltage range, and filtering. PXI oscilloscopes also feature a number of triggering modes, deep onboard memory, and an instrument driver that includes data streaming and analysis functions. This device is ideal for both time-domain and frequency-domain applications that require high-resolution measurements with up to 150 MHz of analog bandwidth. The PXI-5124 also features PXI synchronization and data streaming capabilities.
Model & Varian
| Model | Part Number | Oscilloscope Onboard Memory Size | Product Description |
|---|---|---|---|
| PXI-5124 | 778757-01 | 8 MB/ch | PXI-5124 PXI Oscilloscope, 150 MHz, 12 bits, 200 MS/s, 2 Channels, 8 MB/ch |
| PXI-5124 | 778757-03 | 256 MB/ch | PXI-5124 PXI Oscilloscope, 150 MHz, 12 bits, 200 MS/s, 2 Channels, 256 MB/ch |
| PXI-5124 | 778757-04 | 512 MB/ch | PXI-5124 PXI Oscilloscope, 150 MHz, 12 bits, 200 MS/s, 2 Channels, 512 MB/ch |
| PXI-5124 | 778757-02 | 32 MB/ch | PXI-5124 PXI Oscilloscope, 150 MHz, 12 bits, 200 MS/s, 2 Channels, 32 MB/ch |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Part Number | 778757-01 |
|---|---|
| Bus Connection | PXI Hybrid |
| Analog Input Impedance | 50 Ohm#1 MOhm |
| Oscilloscope Maximum Bandwidth | 150 MHz |
| Number of Voltage Input Channels | 2 |
| Maximum Sample Rate | 200 MS/s |
| Analog Input Voltage Range | -10 V to 10 V |
| Oscilloscope Onboard Memory Size | 8 MB/ch |
| Analog Input Resolution | 12 bits |
| CableSense™ | No |
| Supported Hardware Platform | PXI |
| Reconfigurable | No |
| Supports Peer To Peer Streaming | No |
| Analog Input Coupling | AC/DC |
| Enclosed | Yes |
| Onboard Digital Downconverter | No |
| Product Description | PXI-5124 PXI Oscilloscope, 150 MHz, 12 bits, 200 MS/s, 2 Channels, 8 MB/ch |
