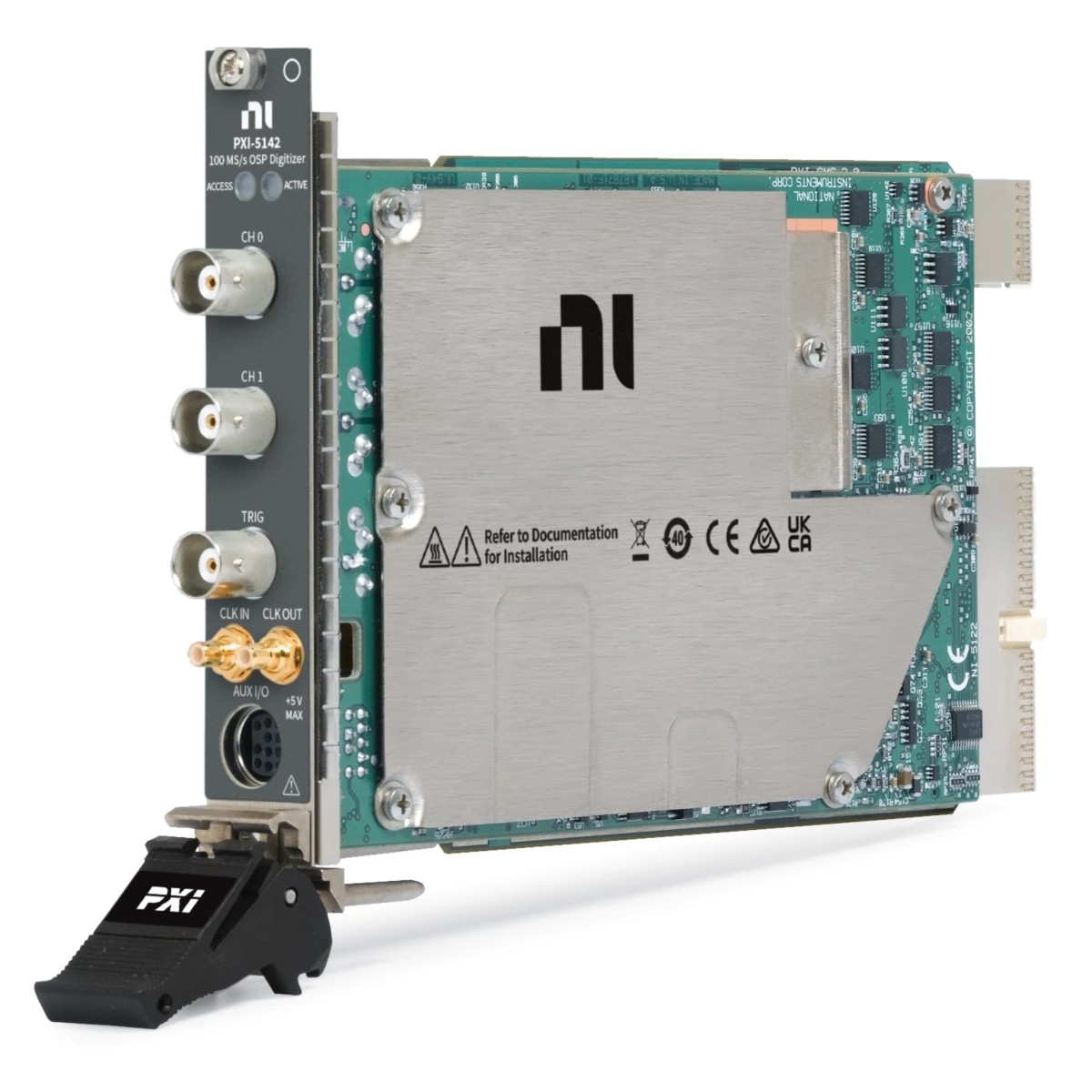

PXI-5142 PXI Oscilloscope, 100 MHz, 14 bits, 100 MS/s, 2 Channels, 256 MB/ch
100 MHz, 100 MS/s, 14-Bit PXI Oscilloscope
The PXI-5142 high-resolution oscilloscope has two channels that are capable of high-resolution, low-noise measurements with up to 100 MHz of bandwidth and onboard resources for quadrature digital downconversion and baseband I/Q decimation. This device is ideal for communications measurements and applications that require interfacing with a RF downconverter. The PXI-5142 also features PXI synchronization and data streaming capabilities.
Model & Varian
| Model | Part Number | Analog Input Voltage Range | Oscilloscope Onboard Memory Size | Product Description |
|---|---|---|---|---|
| PXI-5142 | 779587-02 | -10 V; 10 V | 256 MB/ch | PXI-5142 PXI Oscilloscope, 100 MHz, 14 bits, 100 MS/s, 2 Channels, 256 MB/ch |
| PXI-5142 | 779587-01 | -10 V to 10 V | 64 MB/ch | PXI-5142 PXI Oscilloscope, 100 MHz, 14 bits, 100 MS/s, 2 Channels, 64 MB/ch |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Part Number | 779587-02 |
|---|---|
| Bus Connection | PXI Hybrid |
| Analog Input Impedance | 50 Ohm#1 MOhm |
| Oscilloscope Maximum Bandwidth | 100 MHz |
| Number of Voltage Input Channels | 2 |
| Maximum Sample Rate | 100 MS/s |
| Analog Input Voltage Range | -10 V; 10 V |
| Oscilloscope Onboard Memory Size | 256 MB/ch |
| Analog Input Resolution | 14 bits |
| CableSense™ | No |
| Supported Hardware Platform | PXI |
| Reconfigurable | No |
| Supports Peer To Peer Streaming | No |
| Analog Input Coupling | AC/DC |
| Enclosed | Yes |
| Onboard Digital Downconverter | Yes |
| Product Description | PXI-5142 PXI Oscilloscope, 100 MHz, 14 bits, 100 MS/s, 2 Channels, 256 MB/ch |
