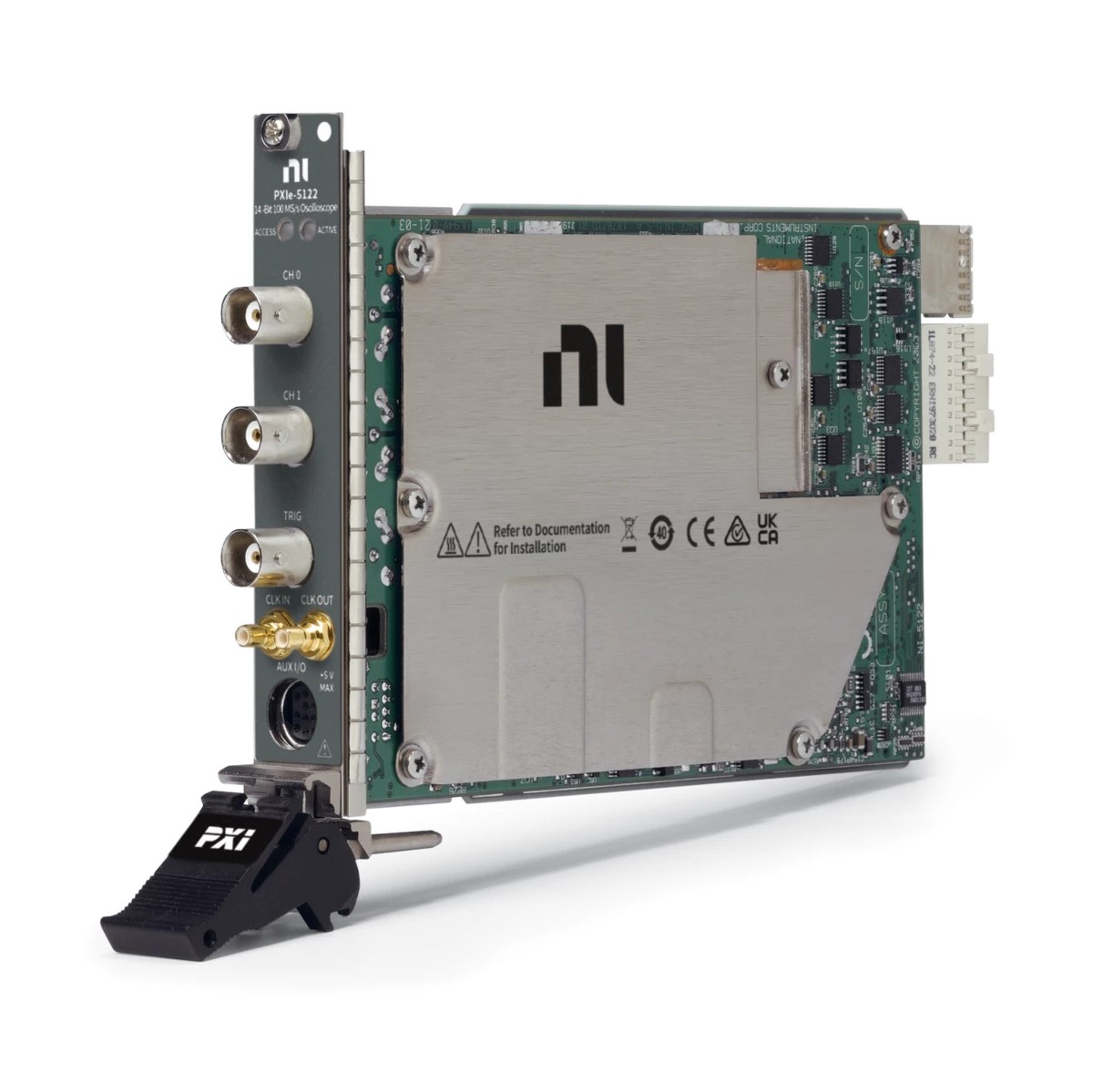

PXIe-5122 PXI Oscilloscope, 100 MHz, 14 bits, 100 MS/s, 2 Channels, 8 MB/ch
PXIe, 100 MHz, 100 MS/s, 14-Bit PXI Oscilloscope
The PXIe-5122 high-resolution PXI oscilloscope has two channels with greater than 75 dBc spurious-free dynamic range (SFDR) and flexible settings for coupling, impedance, voltage range, and filtering. PXI oscilloscopes also feature a number of triggering modes, deep onboard memory, and an instrument driver that includes data streaming and analysis functions. This device is ideal for both time-domain and frequency-domain applications that require high-resolution, low-noise measurements with up to 100 MS/s and 100 MHz of analog bandwidth. The PXIe-5122 also features advanced PXI synchronization and data streaming capabilities.
Model & Varian
| Model | Part Number | Oscilloscope Onboard Memory Size | Product Description |
|---|---|---|---|
| PXIe-5122 | 779967-01 | 8 MB | PXIe-5122 PXI Oscilloscope, 100 MHz, 14 bits, 100 MS/s, 2 Channels, 8 MB/ch |
| PXIe-5122 | 779967-02 | 64 MB | PXIe-5122 PXI Oscilloscope, 100 MHz, 14 bits, 100 MS/s, 2 Channels, 64 MB/ch |
| PXIe-5122 | 779967-03 | 256 MB | PXIe-5122 PXI Oscilloscope, 100 MHz, 14 bits, 100 MS/s, 2 Channels, 256 MB/ch |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Part Number | 779967-01 |
|---|---|
| Bus Connection | PXI Express |
| Analog Input Impedance | 50 Ohm#1 MOhm |
| Oscilloscope Maximum Bandwidth | 100 MHz |
| Number of Voltage Input Channels | 2 |
| Maximum Sample Rate | 100 MS/s |
| Analog Input Voltage Range | -10 V to 10 V |
| Oscilloscope Onboard Memory Size | 8 MB |
| Analog Input Resolution | 14 bits |
| CableSense™ | No |
| Supported Hardware Platform | PXI |
| Reconfigurable | No |
| Supports Peer To Peer Streaming | Yes |
| Analog Input Coupling | AC/DC |
| Enclosed | Yes |
| Onboard Digital Downconverter | No |
| Product Description | PXIe-5122 PXI Oscilloscope, 100 MHz, 14 bits, 100 MS/s, 2 Channels, 8 MB/ch |
