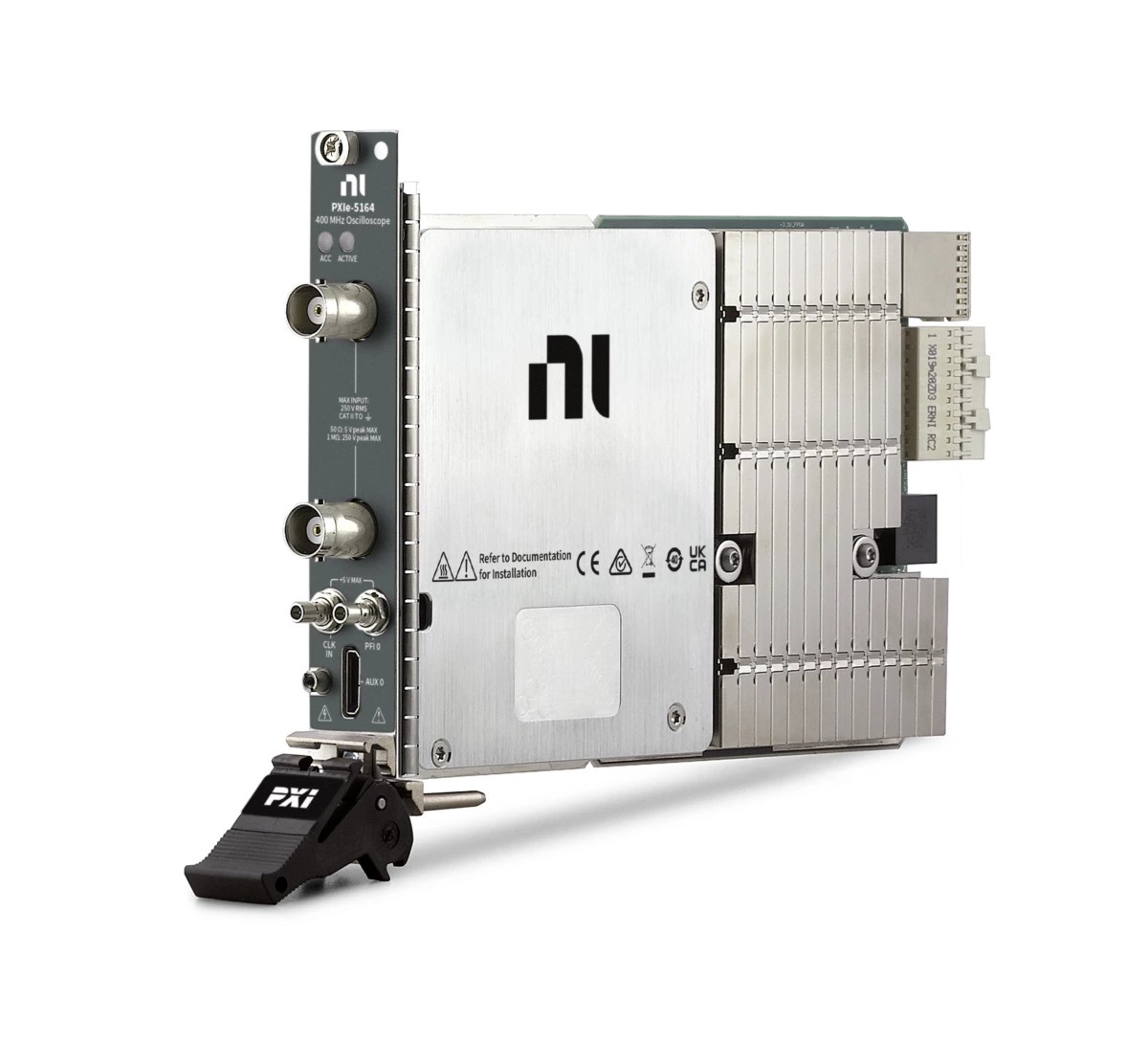

PXIe-5164 PXI Oscilloscope, 400 MHz, 14 bits, 1 GS/s, 2 Channels, 1.5 GB
PXIe, 400 MHz, 1 GS/s, 14-Bit PXI Oscilloscope
The PXIe-5164 high-speed oscilloscope has two channels that sample at up to 1 GS/s with flexible settings for coupling, voltage range, and filtering. PXI oscilloscopes also feature a number of triggering modes, deep onboard memory, and an instrument driver that includes data streaming and analysis functions. This device is ideal for applications with fast signals that require up to 400 MHz of analog bandwidth and flexible measurement configurations for up to 250 V. The PXIe-5164 also features a user-programmable FPGA as well as PXI synchronization and data streaming capabilities.
Spesifikasi
| Part Number | 784183-01 |
|---|---|
| Bus Connection | PXI Express |
| Analog Input Impedance | 50 Ohm#1 MOhm |
| Oscilloscope Maximum Bandwidth | 400 MHz |
| Number of Voltage Input Channels | 2 |
| Maximum Sample Rate | 1 GS/s |
| Analog Input Voltage Range | -50 V to 50 V |
| Oscilloscope Onboard Memory Size | 1.5 GB |
| Analog Input Resolution | 14 bits |
| FPGA | Kintex-7 410T |
| CableSense™ | No |
| Supported Hardware Platform | PXI |
| Reconfigurable | Yes |
| Supports Peer To Peer Streaming | Yes |
| Analog Input Coupling | AC/DC |
| Enclosed | Yes |
| Onboard Digital Downconverter | No |
| Product Description | PXIe-5164 PXI Oscilloscope, 400 MHz, 14 bits, 1 GS/s, 2 Channels, 1.5 GB |
