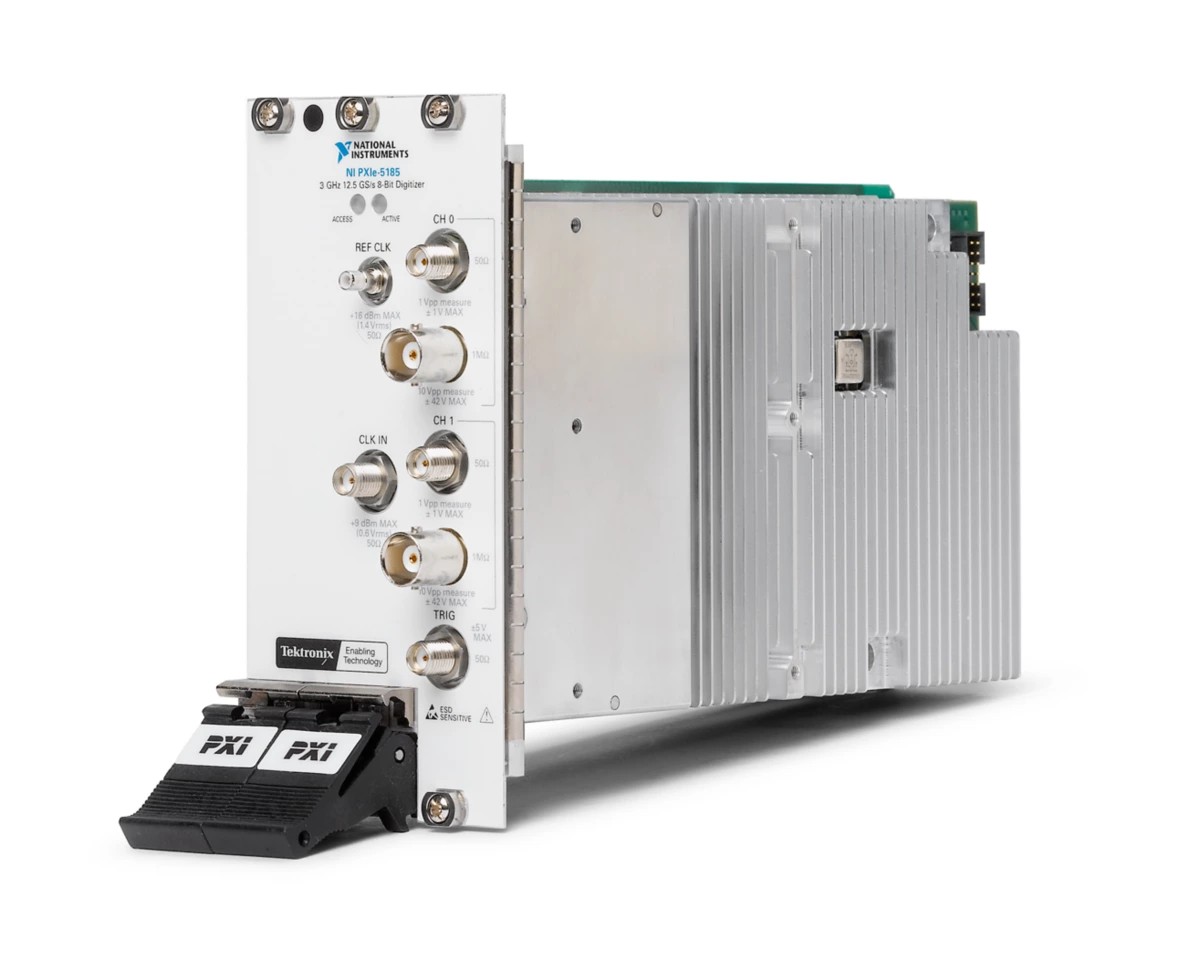

PXIe-5185 PXI Oscilloscope, 3 GHz, 8 bits, 12.5 GS/s, 2 Channels, 512 MB/ch
PXIe, 3 GHz, 12.5 GS/s, 8-Bit PXI Oscilloscope
The PXIe-5185 high-speed PXI oscilloscope has two channels with flexible settings for coupling, voltage range, and filtering. PXI oscilloscopes also feature a number of triggering modes, deep onboard memory, and an instrument driver that includes data streaming and analysis functions. This device is ideal for applications with fast signals that require up to 3 GHz of analog bandwidth and flexible measurement configurations. The PXIe-5185 also features PXI synchronization and data streaming capabilities.
Model & Varian
| Model | Part Number | Oscilloscope Onboard Memory Size | Product Description |
|---|---|---|---|
| PXIe-5185 | 782057-12 | 512 MB/ch | PXIe-5185 PXI Oscilloscope, 3 GHz, 8 bits, 12.5 GS/s, 2 Channels, 512 MB/ch |
| PXIe-5185 | 782057-11 | 16 MB/ch | PXIe-5185 PXI Oscilloscope, 3 GHz, 8 bits, 12.5 GS/s, 2 Channels, 16 MB/ch |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Part Number | 782057-12 |
|---|---|
| Bus Connection | PXI Express |
| Analog Input Impedance | 50 Ohm#1 MOhm |
| Oscilloscope Maximum Bandwidth | 3 GHz |
| Number of Voltage Input Channels | 2 |
| Maximum Sample Rate | 12.5 GS/s |
| Analog Input Voltage Range | -1 V to 1 V |
| Oscilloscope Onboard Memory Size | 512 MB/ch |
| Analog Input Resolution | 8 bits |
| CableSense™ | No |
| Supported Hardware Platform | PXI |
| Reconfigurable | No |
| Supports Peer To Peer Streaming | No |
| Analog Input Coupling | AC/DC |
| Enclosed | Yes |
| Onboard Digital Downconverter | No |
| Product Description | PXIe-5185 PXI Oscilloscope, 3 GHz, 8 bits, 12.5 GS/s, 2 Channels, 512 MB/ch |
