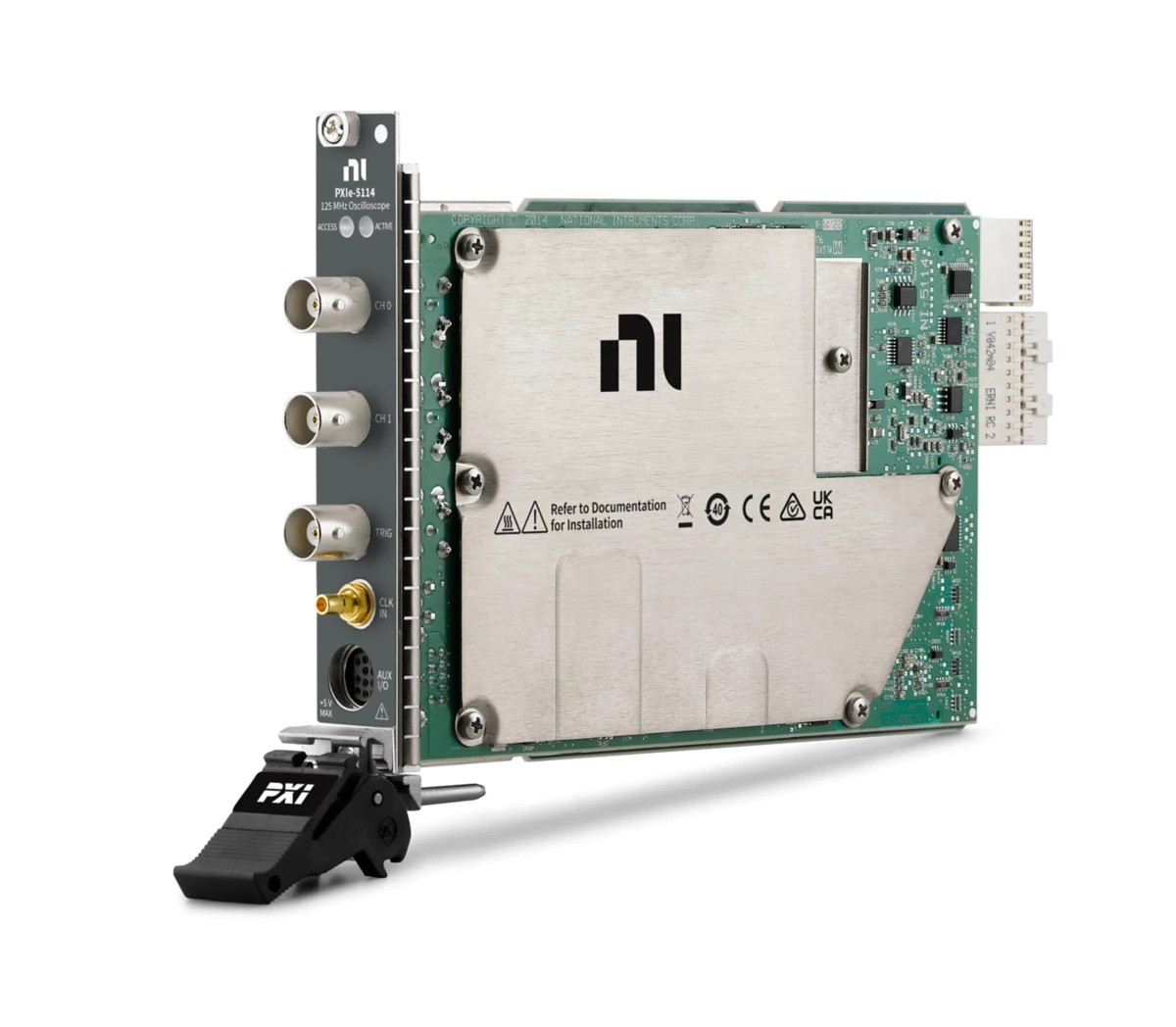

PXIe-5114 PXI Oscilloscope, 125 MHz, 8 bits, 250 MS/s, 2 Channels, 64 MB/ch
PXIe, 125 MHz, 250 MS/s, 8-Bit PXI Oscilloscope
The PXIe-5114 low-cost PXI oscilloscope has two channels that sample up to 250 MS/s with flexible settings for coupling, impedance, voltage range, and filtering. PXI oscilloscopes also feature a number of triggering modes, deep onboard memory, and an instrument driver that includes data streaming and analysis functions. This device is ideal for applications with fast signals that require flexible measurement configurations and up to 125 MHz of analog bandwidth. The PXIe-5114 also features advanced PXI synchronization and data streaming capabilities.
Model & Varian
| Model | Part Number | Oscilloscope Onboard Memory Size | Product Description |
|---|---|---|---|
| PXIe-5114 | 783591-02 | 64 MB | PXIe-5114 PXI Oscilloscope, 125 MHz, 8 bits, 250 MS/s, 2 Channels, 64 MB/ch |
| PXIe-5114 | 783591-03 | 256 MB | PXIe-5114 PXI Oscilloscope, 125 MHz, 8 bits, 250 MS/s, 2 Channels, 256 MB/ch |
| PXIe-5114 | 783591-01 | 8 MB | PXIe-5114 PXI Oscilloscope, 125 MHz, 8 bits, 250 MS/s, 2 Channels, 8 MB/ch |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Part Number | 783591-02 |
|---|---|
| Bus Connection | PXI Express |
| Analog Input Impedance | 50 Ohm#1 MOhm |
| Oscilloscope Maximum Bandwidth | 125 MHz |
| Number of Voltage Input Channels | 2 |
| Maximum Sample Rate | 250 MS/s |
| Analog Input Voltage Range | -20 V to 20 V |
| Oscilloscope Onboard Memory Size | 64 MB |
| Analog Input Resolution | 8 bits |
| CableSense™ | No |
| Supported Hardware Platform | PXI |
| Reconfigurable | No |
| Supports Peer To Peer Streaming | No |
| Analog Input Coupling | AC/DC |
| Enclosed | Yes |
| Onboard Digital Downconverter | No |
| Product Description | PXIe-5114 PXI Oscilloscope, 125 MHz, 8 bits, 250 MS/s, 2 Channels, 64 MB/ch |
