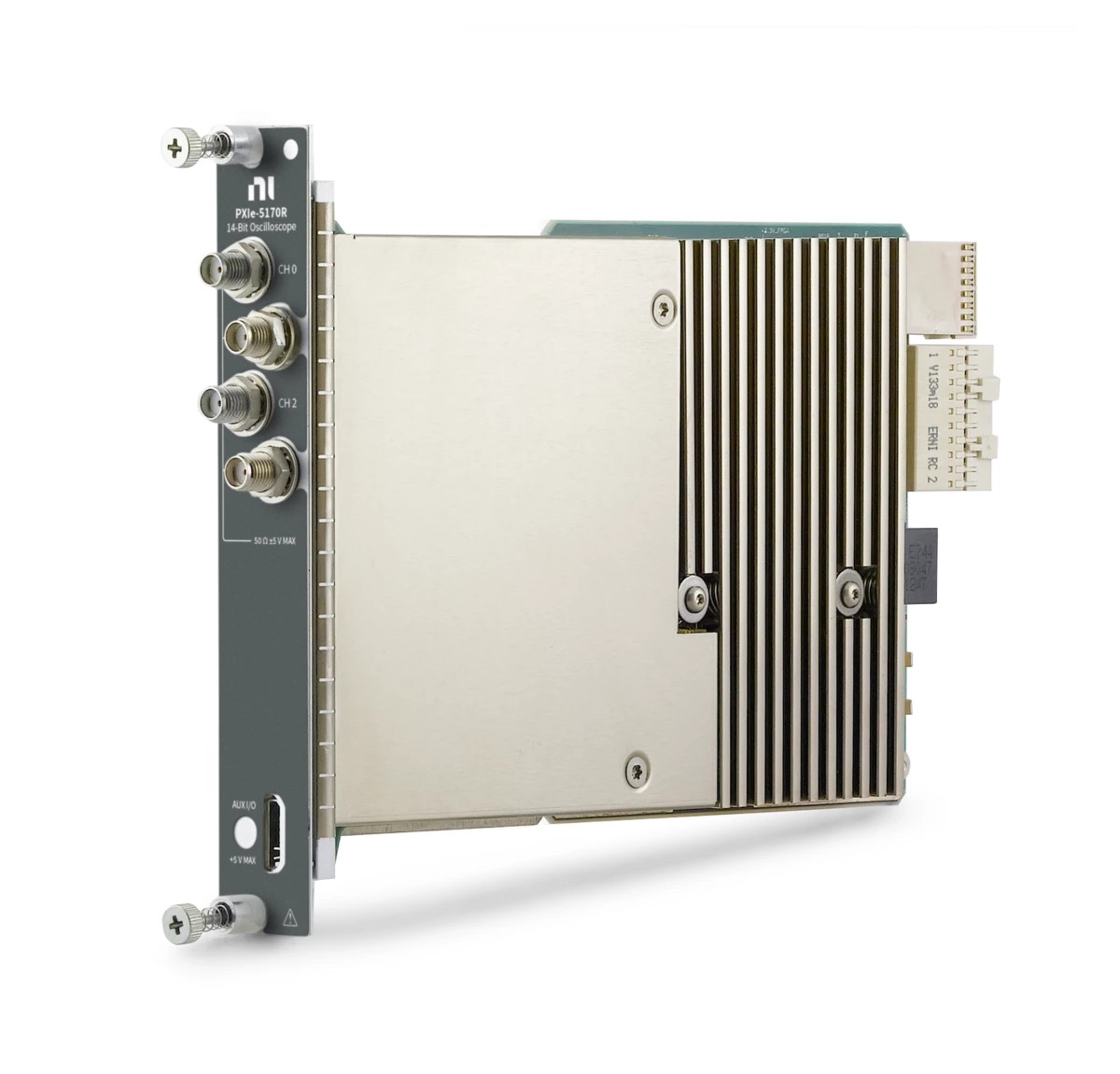

PXIe-5170 PXI Oscilloscope, 100 MHz, 14 bits, 250 MS/s, 4 Channels, .75 GB
PXIe, 100 MHz, 4- or 8-Channel, 14-Bit, Kintex-7 325T FPGA Reconfigurable PXI Oscilloscope
The PXIe-5170 high-density PXI oscilloscope has eight simultaneously-sampled channels with flexible settings for coupling and voltage range. PXI oscilloscopes also feature a number of triggering modes, deep onboard memory, and an instrument driver that includes data streaming and analysis functions. This device is ideal for applications with many channels that require up to 250 MS/s or 100 MHz of analog bandwidth and advanced PXI synchronization. The PXIe-5170 also features a programmable Kintex-7 325T FPGA that can be used for custom acquisition, triggering, signal processing, and data streaming.
Model & Varian
| Model | Part Number | Number of Voltage Input Channels | Oscilloscope Onboard Memory Size | Product Description |
|---|---|---|---|---|
| PXIe-5170 | 783690-01 | 4 | 0.75 GB | PXIe-5170 PXI Oscilloscope, 100 MHz, 14 bits, 250 MS/s, 4 Channels, .75 GB |
| PXIe-5170 | 783691-01 | 8 | 1.5 GB | PXIe-5170 PXI Oscilloscope, 100 MHz, 14 bits, 250 MS/s, 8 Channels, 1.5 GB |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Part Number | 783690-01 |
|---|---|
| Bus Connection | PXI Express |
| Analog Input Impedance | 50 Ohm |
| Oscilloscope Maximum Bandwidth | 100 MHz |
| Number of Voltage Input Channels | 4 |
| Maximum Sample Rate | 250 MS/s |
| Analog Input Voltage Range | -2.5 V to 2.5 V |
| Oscilloscope Onboard Memory Size | 0.75 GB |
| Analog Input Resolution | 14 bits |
| FPGA | Kintex-7 325T |
| CableSense™ | No |
| Supported Hardware Platform | PXI |
| Reconfigurable | Yes |
| Supports Peer To Peer Streaming | Yes |
| Analog Input Coupling | AC/DC |
| Enclosed | Yes |
| Onboard Digital Downconverter | No |
| Product Description | PXIe-5170 PXI Oscilloscope, 100 MHz, 14 bits, 250 MS/s, 4 Channels, .75 GB |
