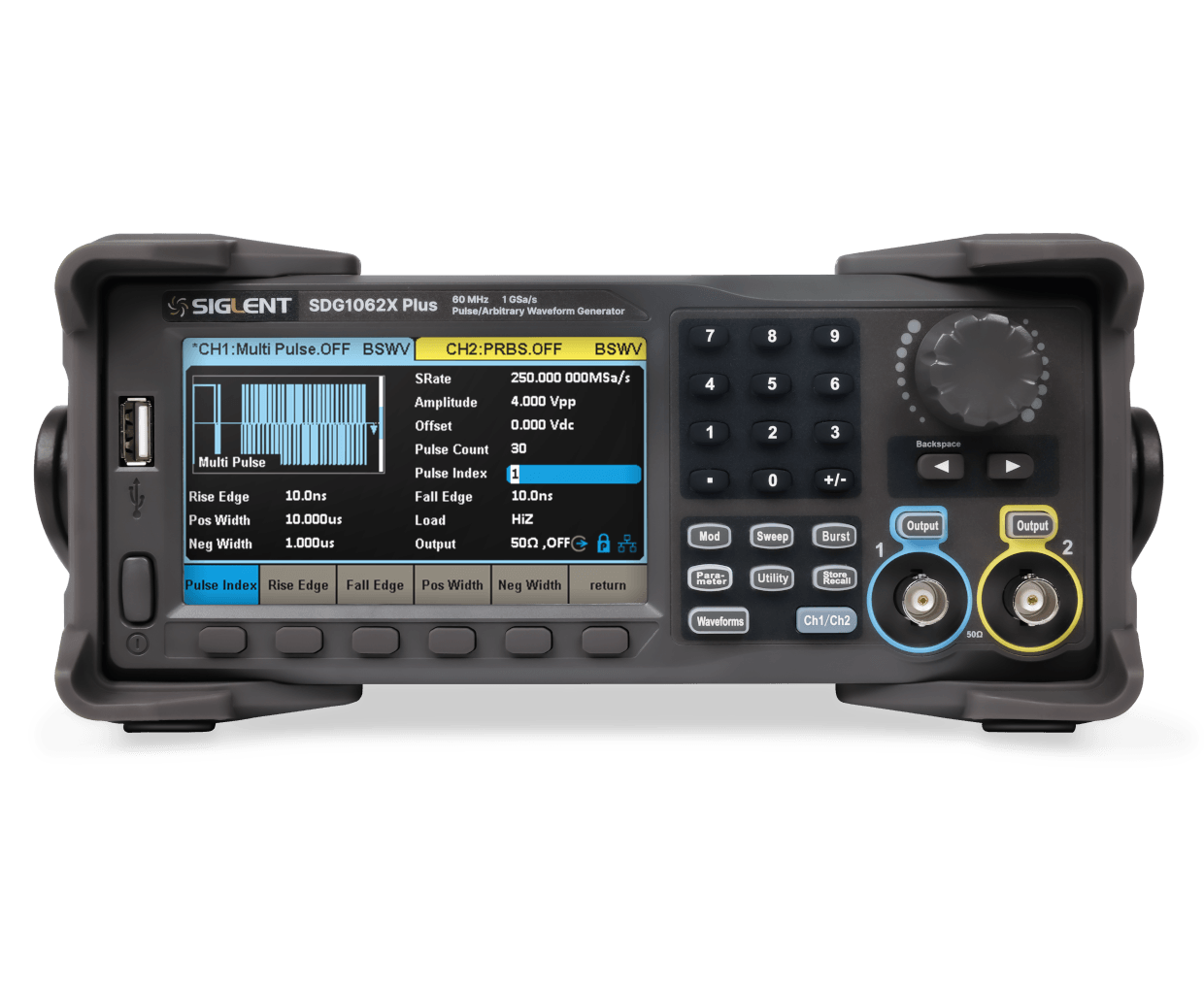

Siglent SDG1000X Plus Waveform and Function Generator 25/30/60 MHz 2 Channels | Generator Fungsi/Bentuk Gelombang
SDG1000X Plus series is a high-performance waveform generator introduced by SIGLENT Technology to the market.
Available models include SDG1022X Plus, SDG1032X Plus, SDG1062X Plus.
SDG1000X Plus series is a high-performance waveform generator introduced by SIGLENT Technology to the market. Its EasyPulse technology ensures the high stability and low jitter of the output waveform, and its powerful waveform editing function can meet the needs of different application scenarios.
Key Features
- Dual output channels, maximum 60 MHz output frequency, maximum 20 Vpp output amplitude
- 1 GSa/s Sampling rate, 16-bit vertical resolution
- Arbitrary wave length 8 Mpts/CH
- Maximum 40 Mbps PRBS output
- Multi-pulse output function
- 4.3-inch display
Model & Varian
| Model | Max Output Frequency | Sampling Rate | Vertical Resolution | Waveform Length | Channels |
|---|---|---|---|---|---|
| SDG1022X Plus | 25 MHz | 1 GSa/s | 16-bit | 8 Mpts | 2 |
| SDG1032X Plus | 30 MHz | 1 GSa/s | 16-bit | 8 Mpts | 2 |
| SDG1062X Plus | 60 MHz | 1 GSa/s | 16-bit | 8 Mpts | 2 |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Model Variants | SDG1022X Plus, SDG1032X Plus, SDG1062X Plus |
|---|---|
| Max Output Frequency | 25 MHz; 30 MHz; 60 MHz |
| Sampling Rate | 1 GSa/s |
| Vertical Resolution | 16-bit |
| Waveform Length | 8 Mpts |
| Channels | 2 |
