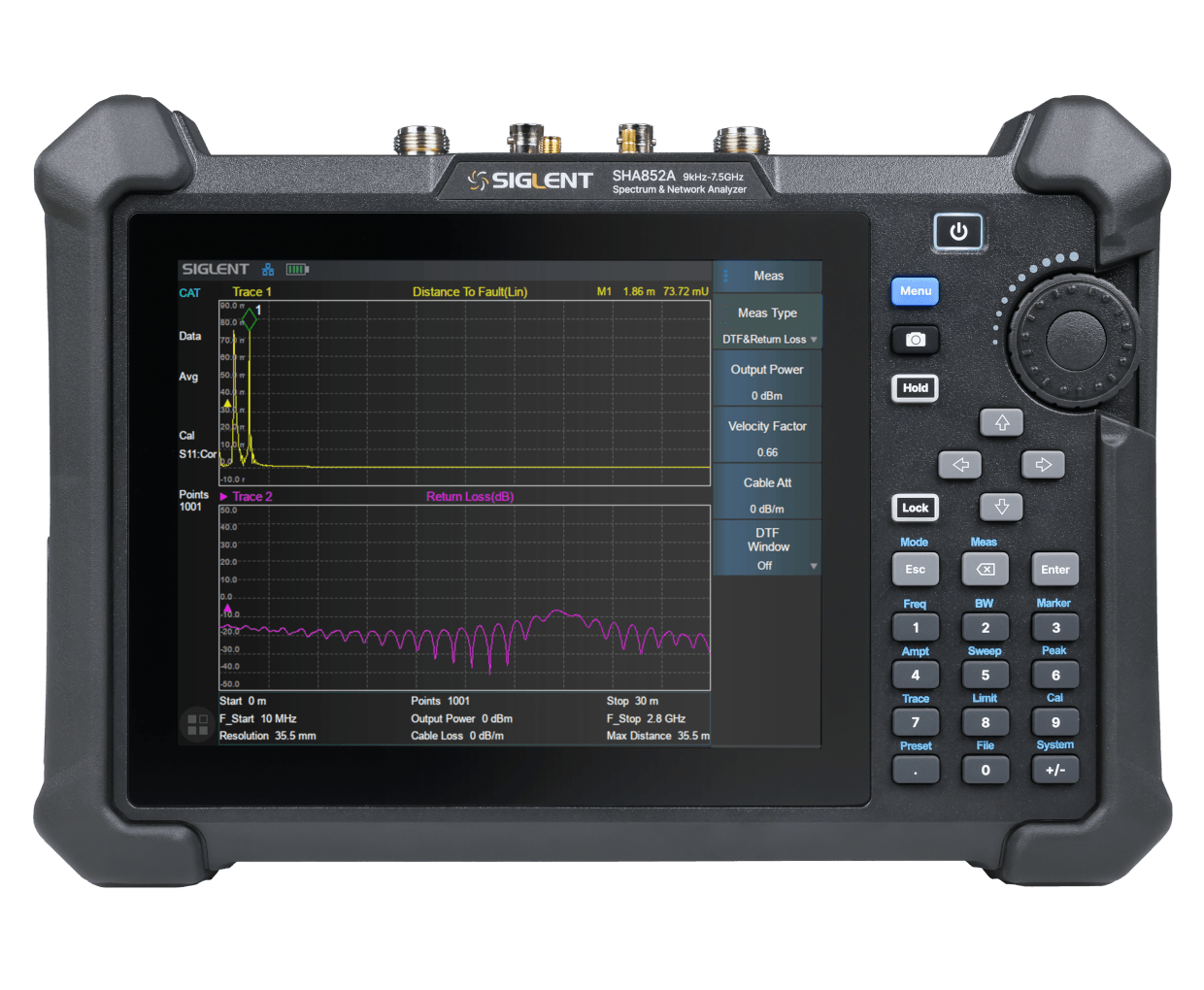

Siglent SHA850A Handheld Spectrum & Vector Analyzer 9 kHz to 7.5 GHz | Analyzer Sinyal RF
Siglent · Signal Analyzer & Spectrum Analyzer
Available models include SHA852A, SHA851A.
SIGLENT SHA850A, a handheld portable spectrum analyzer and cable-and-antenna analyzer, is a powerful and flexible tool for those field and outdoor RF applications.
Key Features
- Spectrum Analyzer Frequency Range:9 kHz - 3.6GHz / 7.5 GHz
- Cable and Antenna Test Frequency Range:100 kHz - 3.6GHz / 7.5 GHz
- Displayed Average Noise Level DANL ＜-165 dBm/Hz
- SSB Phase Noise (Typ.):-104 dBc/Hz， 1 GHz offset 10 kHz
- Full bandwidth source (Opt.*)and standard preamplifier
- Typical working time 4 hours，net weight 3.2 kg
Model & Varian
| Model | Frequency Range | Phase Noise（typ.） | Display Average Noise Level (DANL) | Vector Network Analysis Range | Ports | Frequency Resolution | Setting range of output level | Dynamic Range |
|---|---|---|---|---|---|---|---|---|
| SHA852A | 9 kHz - 7.5 GHz | <-104 dBc/Hz | -165 dBm/Hz | 100 kHz - 7.5 GHz | 2 | 1 Hz | -40dBm ~ 0dBm | 108dB |
| SHA851A | 9 kHz - 3.6 GHz | <-104 dBc/Hz | -165 dBm/Hz | 100 kHz - 3.6 GHz | 2 | 1 Hz | -40dBm ~ 0dBm | 108dB |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Model Variants | SHA852A, SHA851A |
|---|---|
| Frequency Range | 9 kHz - 7.5 GHz; 9 kHz - 3.6 GHz |
| Display Average Noise Level (DANL) | -165 dBm/Hz |
| Vector Network Analysis Range | 100 kHz - 7.5 GHz; 100 kHz - 3.6 GHz |
| Ports | 2 |
| Frequency Resolution | 1 Hz |
| Setting range of output level | -40dBm ~ 0dBm |
| Dynamic Range | 108dB |
